Blackmagic Teranex AV:

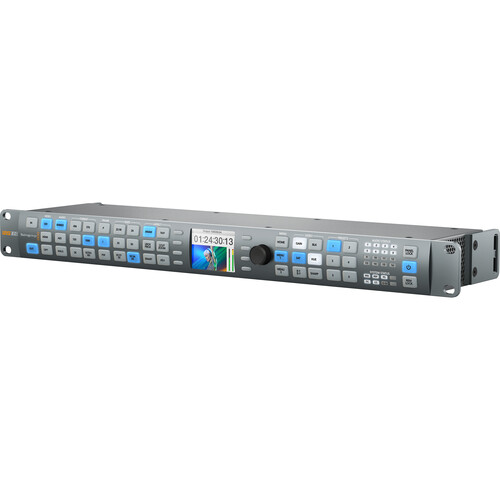

Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex’s patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!

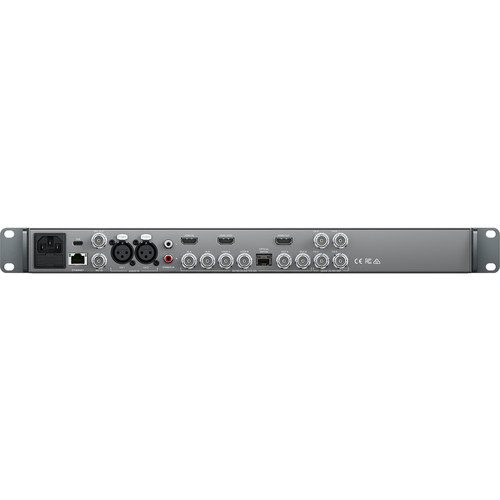

Connections: SDI Video Input:

• 1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
• 1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD

SDI Video Input Loop:

• 1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
• 1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

SDI Video Output:

• 1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
• 1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable duplicated output or dual link output for 4:2:2 3G or 6G Ultra HD.

Quad SDI Video Output: 4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link output when processor output video format is UHD. For other output formats, these connectors will supply four additional replicated SDI outputs.
HDMI Input: 1x HDMI 2.0 type A connector.
HDMI Loop Output : 1x HDMI 2.0 type A connector.
HDMI Output: 1x HDMI 2.0 type A connector.
SDI Audio Input: 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
SDI Audio Output: 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Connection: 1x SFP Optical Fiber connector cage.
Optical Fiber Video Input (optional) : 1x 10¬bit SD, HD, 3G HD, 2K, Ultra HD switchable.
Optical Fiber Video Output (optional) : 1x 10¬bit SD, HD, 3G HD, 2K, Ultra HD switchable. Not available while operating in Dual Link or Quad Link output modes.
Optical Fiber Audio Input (optional) : 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Audio Output (optional) : 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Analog Audio Input: 2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs)
AES/EBU Digital Audio Input : 2x XLR - 2 pairs (4 channels) professional 110? balanced digital audio (XLRs are shared with analog inputs)
Dolby Support Built-In: Dolby AC-3 pass through in all conversions. Dolby E pass through except during video frame rate conversions.
Multi Rate Support: SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference Input: 1x BNC - Blackburst in SD or tri-level sync in HD.
Reference Output: 1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
Computer Interface: USB type C port for software updates and Gigabit Ethernet RJ45 for remote control and configuration.
Processor Interface: Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
Standards: SD Format Support: 525i29.97 NTSC, 625i25 PAL
1.5G-SDI HD Format Support:

• 720p50, 720p59.94, 720p60
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
• 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 1080i50, 1080i59.94, 1080i60

3G-SDI HD Format Support: 1080p50, 1080p59.94, 1080p60 levels A and B
2K Format Support: 2K DCI 23.98p, 2K DCI 24p ; 2K DCI 23.98PsF, 2K DCI 24PsF
Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Metadata Support: VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
Audio Sampling: Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD.
Video Sampling: 4:2:2
Color Precision: 10-bit
Color Space: REC 601, REC 709
SDI Format Support: 525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable.
