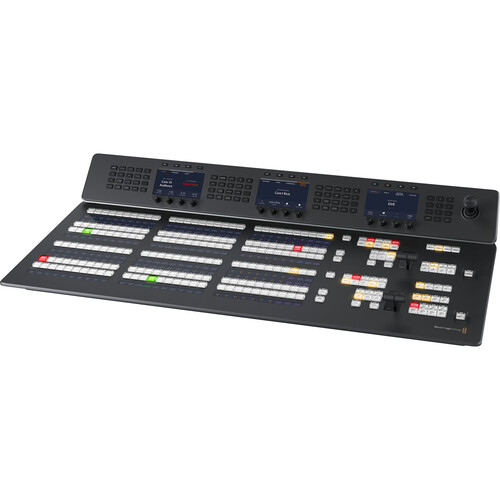

Blackmagic Design ATEM 2 M/E Advanced Panel 30 - BMD-SWPANELADV2ME30

Blackmagic Design ATEM 2 M/E Advanced Panel 30:

For the ultimate in professional control you can add an optional ATEM Advanced Panel! Although you can use ATEM Constellation with the software control panel, using an ATEM Advanced Panel is so much faster! The ATEM Advanced Panels opens up the power of your ATEM Constellation because it gives you an enormous amount of control, allowing you to setup more complex effects. It's also a nicer way to work because you have physical broadcast quality buttons, knobs and a t bar fader so you can access all features in the switcher, all at the same time. Imagine using the 4 M/E model to access all M/Es simultaneously, with an input button for every single SDI source on the ATEM Constellation switcher! The 2 M/E model features 2 M/E rows with 30 input buttons and 3 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!

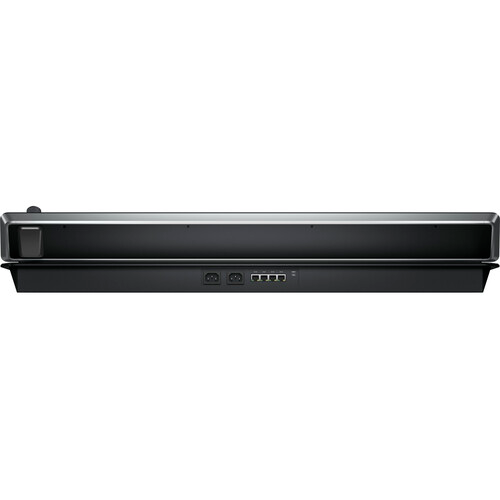

Connections: Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Software Updates: 1 x USB-C for firmware updates.
Product Specifics: Number of Mix Effects Rows: 2
Direct Cross Points: 30
Shifted Cross Points: 60
Crosspoint Button Type: Tri-Color LED
Crosspoint Label: 6 rows 24 character LCD
On-Air indicator: 12
Power Status Indicators: None
DSK Transition Selectors: 4 x Auto, Cut, Tie/Preview
Preview Transition: 2
Transition Rate Displays: Via main menu
LCD Menu Displays: 3
Menu Control: 3 x 20 buttons
Dedicated Macro Buttons: 2 x 30
Transport Control Buttons: 8
Destination Bus: 2
Source Select Bus: 2
Fader Bar: 2
3 Axis Joystick: 1
Numeric Keypad: 1
Power Requirements:
Input Voltage: 2 x Internal 100 - 240V AC.
Redundant Power: Yes
Power Usage: 120W
Environmental Specifications:
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Relative Humidity: Up to 95%
What's Included:

• ATEM 2 M/E Advanced Panel 30


• Welcome wallet with QR code for software download
