Blackmagic Design ATEM Micro Panel - BMD-SWPANELAA1ME10

Blackmagic Design ATEM Micro Panel:

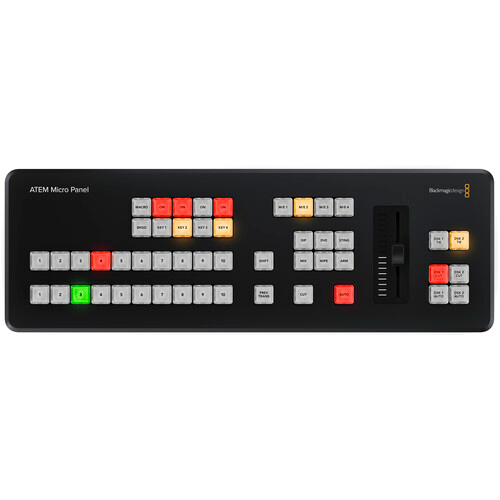

The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!

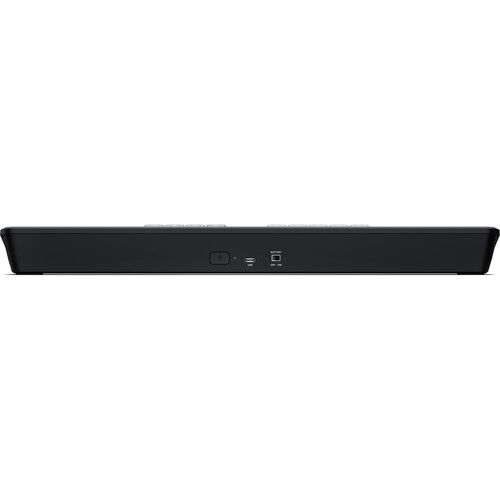

Connections:

• Computer Interface
• USB Type C.
• Bluetooth
• Bluetooth 5.1 LE

Product Specifics:
Number of Mix Effects Rows: 1
Direct Cross Points: 10
Shifted Cross Points: 20
Crosspoint Button Type: Tri-Color LED
Preview Transition: 1
Switching Type Buttons: CUT and AUTO
Transition Type Buttons: DIP, DVE, STINGER, MIX, WIPE.
M/E Select Buttons: 4
Upstream Key Buttons: 4 with ON/OFF
Downstream Key Buttons: 2 with ON/OFF
Transition Slider: 1
Software:

• Software Applications


• ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.

Operating Systems:

• Mac 13.0 Ventura,
• Mac 14.0 Sonoma or later.

Windows 10 and 11. :

• Power Requirements
• Power Supply

Internal battery with power switch. : USB-C port for external power supply and battery charging.
Power Usage: 3 W max.
Physical Specifications:
Environmental Specifications:
Operating Temperature: 5° to 40° C (41° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non condensing
What's Included:

• ATEM Micro Panel
• Welcome wallet with QR code for software download

Warranty: 12 Month Limited Manufacturer’s Warranty.
