Blackmagic Design ATEM 4 M/E Constellation IP Plus - BMD-SWATEMSCN2/3ME4/IP/P

The massive 4 M/E Plus model has 64 standards converted SMPTE-2022-7 inputs using 8 sets of dual redundant 100G Ethernet connections. You also get 48 SMPTE-2022-7 outputs, 16 ATEM Advanced Keys, 4 multi-views and 2 SuperSource for a total of 12 DVEs.

ATEM Constellation IP is a new family of live production switchers with familiar ATEM Constellation features and a more powerful design that's fully SMPTE-2110 native! This means you have the option of adding any mix of traditional 12G-SDI or modern SMPTE-2110 IP video. Plus all IP video connections are fully redundant and SMPTE-2022-7 compliant. ATEM Constellation IP is designed for the chaos of live production, as it will convert non-standard video sources and fix PTP clock problems because each input has a dedicated standards converter and re-synchronizer! You also get powerful ATEM Constellation features like DVEs, advanced chroma keyers, media players, multi-views and SuperSource!

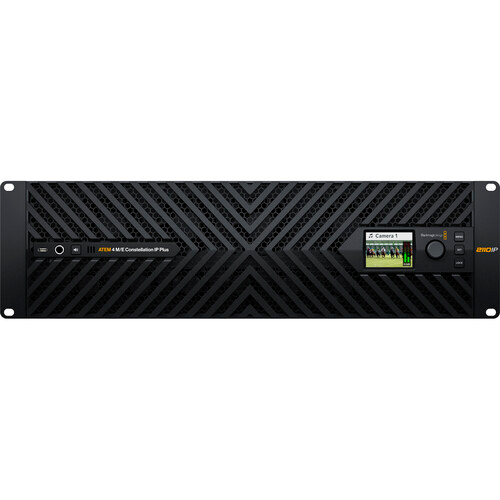

The ATEM 4 M/E Constellation IP has a dramatically different design to other models because it is designed for high end broadcasters. The new design features front to back cooling with 4 fans that are extremely quiet. All connections feature full redundancy with SMPTE-2022-7 on all video ports, plus additional redundancy on the control and PTP Ethernet ports. A built in LCD displays all standard ATEM Constellation status information and provides access to settings menus. The front panel even includes a headphone connection and built-in speaker for local program monitoring! A USB-C connection on the front panel lets you update software or even connect the ATEM Software Control app!
