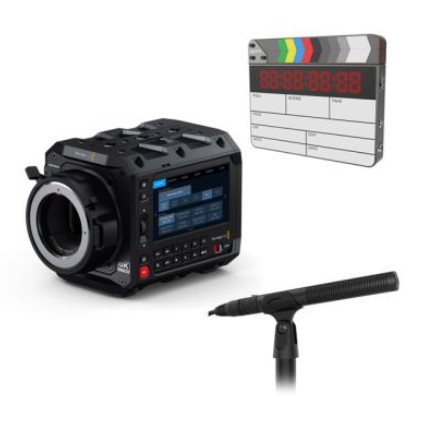

Blackmagic Design Including: 1 x Blackmagic PYXIS 6K EF 1 x DEITY TC-SL1 Smart Timecode Slate 1 x DEITY Microphone S-Mic 3S (Short XLR Shotgun) - BMD-PYXIS-EF-DEITY-MIC3S-TC-SL1-DB

Blackmagic PYXIS 6K EF, Deity TC-SL1 Smart Timecode Slate & Deity Microphone S-Mic 3S (Short XLR Shotgun) Bundle Blackmagic Design PYXIS 6K (EF Mount)

Blackmagic Design’s PYXIS 6K is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full frame HDR sensor with built in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. The PYXIS 6K is available in three different models with fixed L-Mount, PL or locking EF lens mounts!

Camera Features Effective Sensor Size 36mm x 24mm (Full Frame)
Lens Mount EF Mount
Lens Control Iris and focus on supported lenses.
Dynamic Range 13 Stops.
Dual Native ISO 400 and 3200
Shooting Resolutions

• 6048 x 4032 (Open Gate 3:2) up to 36 fps
• 4832 x 4032 (Anamorphic 6:5) up to 36 fps
• 6048 x 3200 (6K DCI 17:9) up to 48 fps
• 6048 x 2520 (6K 2.4:1) up to 60 fps
• 4096 x 3072 (Super 35 4:3) up to 50 fps
• 4096 x 2160 (4K DCI 17:9) up to 60 fps
• 2112 x 1184 (Super 16 16:9) up to 100 fps
• 1920 x 1080 (1080 HD 16:9) up to 120 fps

Frame Rates

• Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.

Focus Auto focus available using compatible lenses.
Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen Dimensions 4” 1920 x 1080.
Screen Brightness 1500 nits
Screen Type LCD capacitive touchscreen.
Metadata Support Automatically populated lens data from electronic EF-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls Touchscreen menus on 4 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Playback Button, 1 x Next Clip Button, 1 x Previous Clip Button, 1 x Lock Switch.
Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections Total Video Inputs None
Total Video Outputs

• 1 x 12G-SDI up to 2160p60
• 1 x Viewfinder USB-C with power, data, video and locking connector.

Analog Audio Inputs

• 1 x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14dBu).
• 1 x 3.5mm Stereo Input.

Analog Audio Outputs 1 x 3.5mm headphone jack.
Reference Inputs Tri-Sync/Black Burst and Timecode.
Computer Interface

• USB Type-C for external drive recording,
• PTP camera control and software updates.

Ethernet

• 1 x 1Gb/s RJ 45 connector supporting
• 10/100/1000 BASE-T.

Audio Microphone Integrated stereo microphone.
Built in Speaker 1 x mono speaker.
Media Media 2 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.
Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs Codecs

• Blackmagic RAW Constant Bitrate 3:1,
• Blackmagic RAW Constant Bitrate 5:1,
• Blackmagic RAW Constant Bitrate 8:1,
• Blackmagic RAW Constant Bitrate 12:1,
• Blackmagic RAW Constant Quality Q0,
• Blackmagic RAW Constant Quality Q1,
• Blackmagic RAW Constant Quality Q3,
• Blackmagic RAW Constant Quality Q5,
• H.264 Proxy in 1920 x 1080, 8-bit 4:2:0

Control External Control

• Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
• iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet for external control via HTTP when used with REST client applications such as Postman.

Storage Features
Storage Type

• 1 x CFexpress Type B
• 1 x high speed USB-C expansion port for external media.

Recording Formats

• Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
• Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies.

Storage Rates

Storage rates based on 30 frames per second.

6048 x 4032 (6K Open Gate 3:2)

• Blackmagic RAW 3:1 - 370 MB/s
• Blackmagic RAW 5:1 - 223 MB/s
• Blackmagic RAW 8:1 - 140 MB/s
• Blackmagic RAW 12:1 - 94 MB/s
• Blackmagic RAW Q0 - 278 to 555 MB/s
• Blackmagic RAW Q1 - 186 to 444 MB/s
• Blackmagic RAW Q3 - 124 to 318 MB/s
• Blackmagic RAW Q5 - 75 to 186 MB/s

4832 x 4032 (Anamorphic 6:5)

• Blackmagic RAW 3:1 - 297 MB/s
• Blackmagic RAW 5:1 - 179 MB/s
• Blackmagic RAW 8:1 - 112 MB/s
• Blackmagic RAW 12:1 - 75 MB/s
• Blackmagic RAW Q0 - 223 to 445 MB/s
• Blackmagic RAW Q1 - 149 to 356 MB/s
• Blackmagic RAW Q3 - 100 to 255 MB/s
• Blackmagic RAW Q5 - 60 to 149 MB/s

6048 x 3200 (6K DCI 17:9)

• Blackmagic RAW 3:1 - 295 MB/s
• Blackmagic RAW 5:1 - 177 MB/s
• Blackmagic RAW 8:1 - 111 MB/s
• Blackmagic RAW 12:1 - 75 MB/s
• Blackmagic RAW Q0 - 221 to 441 MB/s
• Blackmagic RAW Q1 - 148 to 353 MB/s
• Blackmagic RAW Q3 - 99 to 253 MB/s
• Blackmagic RAW Q5 - 60 to 148 MB/s

6048 x 2520 (6K 2.4:1)

• Blackmagic RAW 3:1 - 233 MB/s
• Blackmagic RAW 5:1 - 140 MB/s
• Blackmagic RAW 8:1 - 88 MB/s
• Blackmagic RAW 12:1 - 59 MB/s
• Blackmagic RAW Q0 - 175 to 348 MB/s
• Blackmagic RAW Q1 - 117 to 279 MB/s
• Blackmagic RAW Q3 - 78 to 199 MB/s
• Blackmagic RAW Q5 - 47 to 117 MB/s

4096 x 3072 (Super 35 4:3)

• Blackmagic RAW 3:1 - 192 MB/s
• Blackmagic RAW 5:1 - 116 MB/s
• Blackmagic RAW 8:1 - 73 MB/s
• Blackmagic RAW 12:1 - 49 MB/s
• Blackmagic RAW Q0 - 145 to 288 MB/s
• Blackmagic RAW Q1 - 97 to 231 MB/s
• Blackmagic RAW Q3 - 65 to 165 MB/s
• Blackmagic RAW Q5 - 39 to 97 MB/s

4096 x 2160 (4K DCI 17:9)

• Blackmagic RAW 3:1 - 136 MB/s
• Blackmagic RAW 5:1 - 82 MB/s
• Blackmagic RAW 8:1 - 52 MB/s
• Blackmagic RAW 12:1 - 35 MB/s
• Blackmagic RAW Q0 - 102 to 203 MB/s
• Blackmagic RAW Q1 - 69 to 163 MB/s
• Blackmagic RAW Q3 - 46 to 117 MB/s
• Blackmagic RAW Q5 - 28 to 69 MB/s

2112 x 1184 (Super 16 16:9)

• Blackmagic RAW 3:1 - 40 MB/s
• Blackmagic RAW 5:1 - 24 MB/s
• Blackmagic RAW 8:1 - 16 MB/s
• Blackmagic RAW 12:1 - 11 MB/s
• Blackmagic RAW Q0 - 30 to 59 MB/s
• Blackmagic RAW Q1 - 21 to 48 MB/s
• Blackmagic RAW Q3 - 14 to 34 MB/s
• Blackmagic RAW Q5 - 9 to 21 MB/s

1920 x 1080

• Blackmagic RAW 3:1 - 33 MB/s
• Blackmagic RAW 5:1 - 20 MB/s
• Blackmagic RAW 8:1 - 13 MB/s
• Blackmagic RAW 12:1 - 9 MB/s
• Blackmagic RAW Q0 - 25 to 49 MB/s
• Blackmagic RAW Q1 - 17 to 40 MB/s
• Blackmagic RAW Q3 - 12 to 29 MB/s
• Blackmagic RAW Q5 - 8 to 17 MB/s

Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter.

Software Software Included

• Blackmagic OS
• DaVinci Resolve Studio for Mac and Windows including activation key
• Blackmagic Camera Setup
• Blackmagic RAW Player
• Blackmagic RAW QuickLook Plugin
• Blackmagic RAW SDK
• Blackmagic RAW Speed Test

Operating Systems

• Mac 13.0 Ventura,
• Mac 14.0 Sonoma or later.
• Windows 10 and 11.

Power Requirements Power Supply 1 x External 12V power supply.
External Power Input 1 x 2 pin locking connector.
Battery Type BP-U
Power 11-19.5V
Accessories Optional Accessories

• Blackmagic URSA Cine Handle
• Blackmagic URSA Cine EVF
• Blackmagic PYXIS Rosette Plate

Physical Specifications Environmental Specifications
Operating Temperature 0°to 40°C (32° to 104°F)
Storage Temperature -20°to 45°C (-4° to 113°F)
Relative Humidity 0% to 90% non-condensing
What's Included

• Blackmagic PYXIS 6K
• Lens turret dust cap
• PYXIS Standard Plate
• PYXIS SSD Plate
• 60W power supply with locking connector and international adapters
• Welcome booklet
• DaVinci Resolve Studio activation key

Warranty Product Warranty 12 Month Limited Manufacturer’s Warranty.

Deity TC-SL1 Smart Timecode Slate Features:

• Super Bright Dot Matrix Timecode Display
• Remote Control via Bluetooth® Phone App
• Dual TC I/O; 5-Pin LEMO® , 1/4” TRS
• Supports All SMPTE Formats, Less than 1 Frame Drift over 24 Hours
• Dual Battery Bay; Supports NP-F550 Batteries
• Features a Dimmable Back Light
• USB-C Charging Port; 25 Watt
• Flippable Timecode Display for Tail Slating

The Deity TC-SL1 is the world's first Bluetooth® enabled smart slate. Wirelessly sync the TC-SL1 from up to 250 feet away using its free phone app, Sidus Audio. You can also sync the TC-SL1 using your TC-1 timecode boxes. Featuring both 5-Pin and 1/4” TRS, the TC-SL1 will work with your existing timecode cables. And with the flick of a switch, the TC-SL1 can accommodate tail slating. The two NP-F550s can be hot-swapped between each other, and the USB-C port can support up to 30W charging. The wooden clapper is made from sustainably farmed Walnut lumber from the state of Tennessee.

Includes:

• 1x Deity TC-SL1 Wireless Timecode Slate
• 2x Deity NP-F550 7.4V 3350mAh Batteries
• 1x USB-C to USB Cable
• 1x 3.5mm to 5-pin Timecode Cable
• 1x Dry Erase Marker
• 1x Carrying Case

Deity Microphone S-Mic 3S (Short XLR Shotgun) Features:

• Broadcast sound quality
• Resistant against radio frequency interference
• Aluminum alloy ultra-light body, weighing a mere 44g
• Only 148mm Long (<6 Inches)
• Weather Resistant
• 48V Phantom
• Ultra-low noise circuit; 12dB noise floor (A-weighted)
• High sensitivity, less gain required
• Smooth tone and low off-axis coloration

Introducing the Deity S-Mic 3S: Compact Powerhouse for Professional Filmmakers

Welcome to the next evolution in professional audio recording—the Deity S-Mic 3S. Engineered to meet the rigorous demands of critical filmmakers who refuse to compromise on quality, this short shotgun microphone is a compact powerhouse, delivering broadcast-quality sound in any environment.

Broadcast Sound Quality:

Experience unparalleled audio clarity with the S-Mic 3S. Designed to capture every nuance with precision, this microphone ensures that your recordings sound crisp and professional, every time.

RFI Resistance:

Say goodbye to interference. The S-Mic 3S is resistant against radio frequency interference, ensuring that your audio remains clean and free from unwanted disruptions, even in challenging environments.

Ultra-Light Aluminum Alloy Body:

CNC’ed from premium aluminum alloy, the S-Mic 3S strikes the perfect balance between durability and portability. Weighing in at a mere 44g and measuring less than 6 inches long, this microphone is built to accompany you wherever your creativity takes you. In fact, the S-Mic 3S is the world’s lightest XLR shotgun microphone.

Weather Resistant:

From rain-soaked streets to scorching desert sun, the S-Mic 3S thrives in any weather condition. Designed to withstand the elements, this microphone ensures reliable performance, even in the most challenging outdoor environments. The S-Mic 3S is capable of handling up to 95% humidity without it affecting the sound quality.

Ultra-Low Noise Circuit:

Enjoy pristine audio quality with the S-Mic 3S's ultra-low noise circuit. With a 12dB noise floor (A-weighted), this microphone captures sound with exceptional clarity, ensuring that your recordings are free from unwanted electronic noise.

High Sensitivity, Low Gain:

Thanks to its high sensitivity design, the S-Mic 3S requires minimal gain adjustment, allowing you to capture stunning audio with ease. Spend less time adjusting settings and more time focusing on your craft.

Smooth Tone, Low Off-Axis Coloration:

Experience true-to-life sound reproduction with the S-Mic 3S. Enjoy a smooth tone and minimal off-axis coloration, ensuring that your recordings sound natural and immersive, from any angle.

Designed for Versatility:

Whether used for indoor boom operation or mounted on an ENG camera, the S-Mic 3S is designed for versatility. Its compact size and lightweight construction make it the perfect choice for any filmmaking setup, allowing you to capture professional-quality audio in any situation.

In the Box:

• S-Mic 3S
• Premium Wooden Microphone Case
• Foam Windscreen
• Microphone Clip
• 5 Year Warranty
