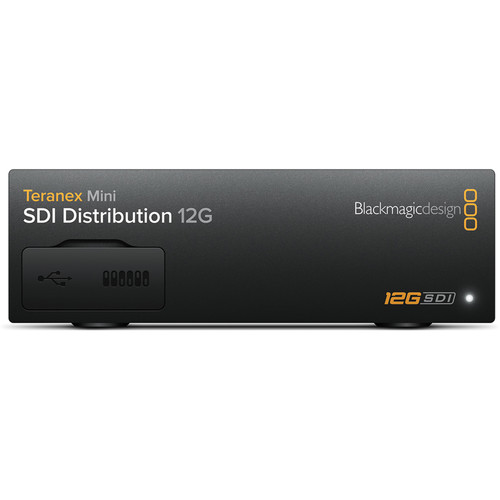

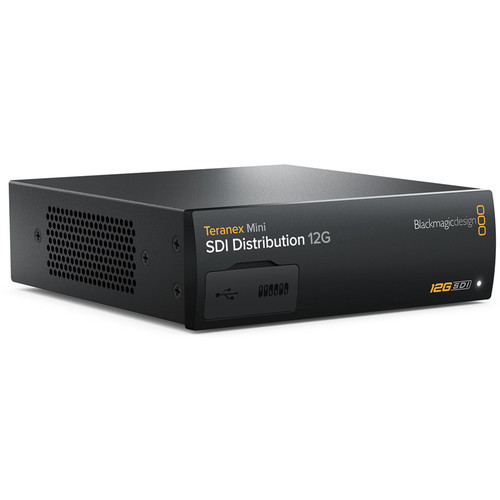

Blackmagic Design Teranex Mini - SDI Distribution 12G - BMD-CONVNTRM/EA/DA

Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

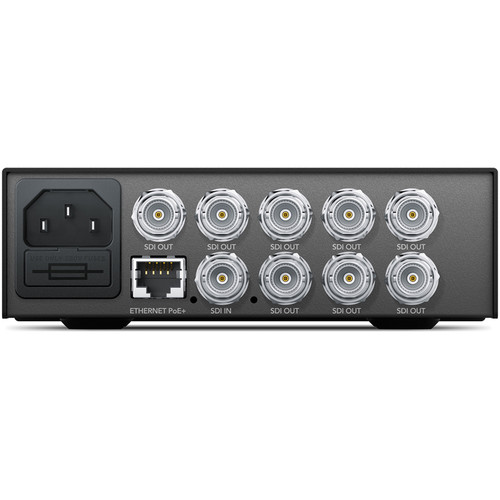

• SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.
• SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
• Multi Rate Support: Automatic switching between SD/HD/2K and 4K
• Updates and Configuration: USB or Ethernet
• Re-Clocking: Yes
Standards:
• SD Format Support: 525/29.97 NTSC, 625/25 PAL
• HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
• 2K Format Support: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25,
• Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.
• 4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082
• SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Space: YUV & RGB
