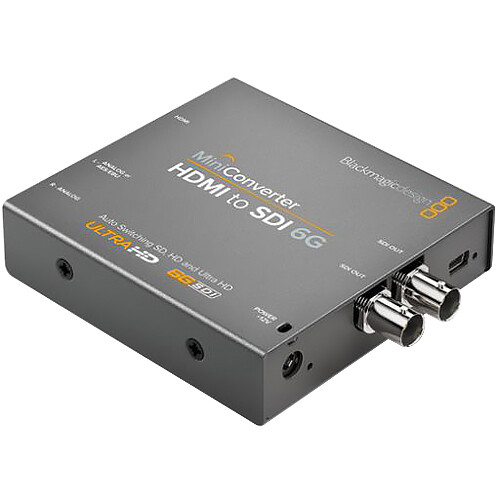

Blackmagic Design Mini Converter - HDMI to SDI 6G - BMD-CONVMBHS24K6G

Blackmagic Mini Converter - HDMI to SDI 6G

Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI!

Connections

SDI Video Outputs: 2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input.

HDMI Video Inputs: HDMI type A in

Analog Audio Inputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

Digital Audio Inputs: 4 channels of AES/EBU digital audio.

Multi Rate Support: Auto detection of SD, HD or 6G-SDI.

Updates and Configuration: USB

Reclocking: Yes

Standards

SD Video Standards: 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards: 4K DCI p24

SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601.

SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.

SDI Video Sampling: 4:2:2

SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision : 4:2:2

SDI Color Space: YUV

SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.

HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

HDMI Color Space: YUV and RGB

HDMI Color Precision : 4:2:2 and 4:4:4

Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Format Conversion : HD down conversion

Software

Software Control: Mac OS X™ and Windows™ software upgrade via USB.

Internal Software Upgrade: Via included updater application.

Operating Systems : macOS 10.12 Sierra, macOS 10.13 High Sierra or later, Windows 8.1 or Windows 10.

Settings Control : Mini Switches or USB software.

Power Requirements

Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption: 4.44 Watts

Environmental Specifications

Operating Temperature: 0° to 40° C (32° to 104° F)

Storage Temperature: -20° to 45° C (-4° to 113° F)

Relative Humidity: 0% to 90% non-condensing

Warranty : 3 Year Limited Manufacturer's Warranty.
