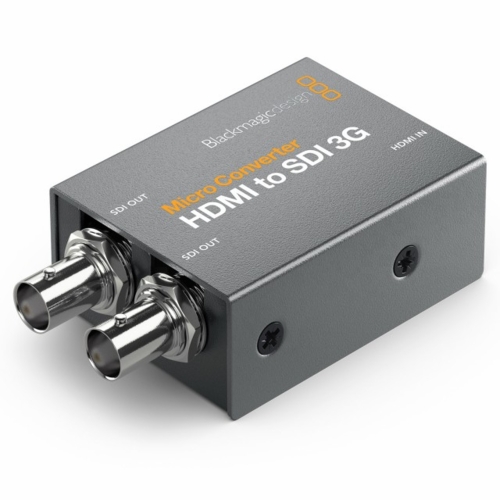

Blackmagic Design Micro Converter HDMI to SDI 3G - BMD-CONVCMIC/HS03G

*** Note: This product does not include the power supply This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.

• SDI Video Outputs: 2 x SD, HD or 3G SDI. ; Automatically matches the HDMI input.
• HDMI Video Inputs: HDMI Type A in.
• Multi Rate Support: Auto detection of SD or HD.
• Updates, Configurations and Power : USB Type C.
• Reclocking : Yes


Standards
• SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards : 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Rates : SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G SDI via setup utility.
• SDI Color Precision : 4:2:2
• SDI Color Space : YUV
• SDI Auto Switching : Automatically detects SD, HD, and 3G-SDI
• HDMI Video Standards : 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision : 4:2:2
• HDMI Color Space: YUV
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software
• Software Control : Mac OSX™ and Windows™ software via micro USB.
• Internal Software Upgrade: Via micro USB.
• Operating Systems: macOS 10.14 Mojave, macOS 10.15 Catalina of later, Windows 10.
• Settings Control : Via software utility.
Power Requirements
• Power Consumption : 2.0 Watts
• Operational Voltage Range : 4.4 to 5.25V DC
Environmental Specifications
• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity : 0% to 90% non-condensing
• Physical Specifications :
• What's Included : Micro Converter HDMI to SDI
• Warranty: 3 Year Limited Manufacturer's Warranty.

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
