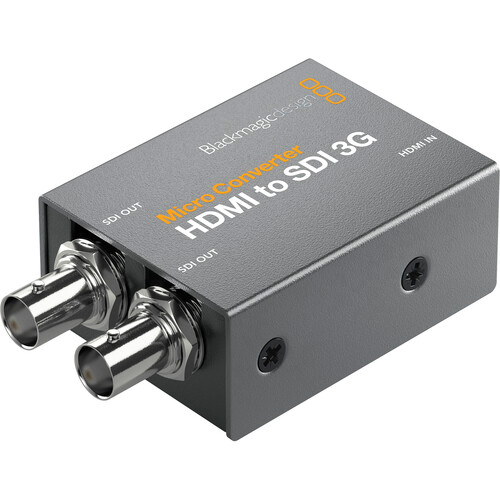

Blackmagic Design Micro Converter HDMI to SDI 3G PSU - BMD-CONVCMIC/HS03G/WPSU

Blackmagic Design Micro Converter HDMI to SDI 3G PSU - BMD-CONVCMIC/HS03G/WPSU

Part Number: BMD-CONVCMIC/HS03G/WPSU
Our Price: $85.00
Availability: Usually ships the same business day
-
+
Bookmark
Share This

Description

Blackmagic Micro Converter - HDMI to SDI with Power Supply

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.

Connections
  • SDI Video Outputs: 2 x SD, HD or 3G SDI. Automatically matches the HDMI input.
  • HDMI Video Inputs: HDMI Type A in.
  • Multi Rate Support : Auto detection of SD or HD.
  • Updates, Configurations and Power : USB Type C.
  • Reclocking: Yes
    • Standards
  • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G SDI via setup utility.
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
  • HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
  • HDMI Color Precision: 4:2:2
  • HDMI Color Space: YUV
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
    • Software
  • Software Control: Mac OSX™ and Windows™ software via micro USB.
  • Internal Software Upgrade: Via USB.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10.
  • Settings Control: Via software utility.
  • Power Requirements: +5V universal power supply included with international socket adapters for all countries.
  • Power Consumption: 2.0 Watts
  • Operational Voltage Range: 4.4 to 5.25V DC
    • Physical Specifications Environmental Specifications
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 60° C (-4° to 140° F)
  • Relative Humidity: 0% to 90% non-condensing
  • What's Included: Micro Converter HDMI to SDI 3G wPSU, +5V universal power supply with international socket adapters
  • Warranty: 3 Year Limited Manufacturer's Warranty.
