Blackmagic Design PYXIS Monitor EVF Kit - BMD-CINEURSABB/AMKITEVF

Blackmagic Design PYXIS Monitor EVF Kit Blackmagic PYXIS Monitor is a versatile 5? HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as en electronic viewfinder.

Features

• Display Size:
5 inch.
• Display Resolution:
Full 1920 x 1080.
• Display Type :
LCD capacitive touchscreen.
• Display Brightness:
1500 nits.
• Frame Rates:
Up to 60fps.
• Tally:
Rear facing LED tally light.
• Accelerometer:
Automatically rotates image when monitor mounted upside down.

Control
• On Screen Controls:
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
• Button Controls:
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
• Function Button Presets:
• FPS: Preset Value
• Iris: Preset Value
• WB: Preset Value
• ISO: Preset Value
• Shutter: Preset Value



• Function Button Toggle:
• Clean Feed
• Status Text
• Display LUT
• Frame Guides
• Focus Assist
• False Color
• Zebra
• Grid
• Safe Area Guide
• Off Speed Rec
• Focus Zoom
• Focus
• Record
• Auto White Balance
• Color Bars
• Playback
• False Color + Zebra
• OIS
• Stream
• Still


Mounting
• Mounting Points
• 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
• 2 x M4 bottom mounting points.
• 1 x 1/4-20 side mounting point with ARRI locating pin pattern.
• 2 x M4 side mounting points.



• Mounting Brackets
• Blackmagic PYXIS Monitor Swivel Mount included in EVF Kit.
• Blackmagic PYXIS Monitor Fixed Mount included in EVF Kit.
• Blackmagic PYXIS Monitor Dovetail Shoe included in EVF Kit.
• Blackmagic URSA Cine EVF Bracket included in EVF Kit.

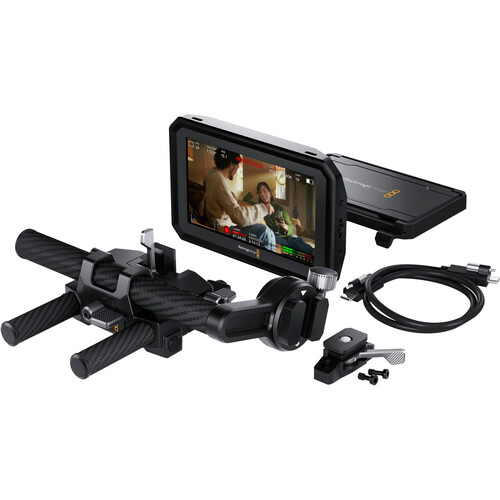

What's In The Box
• Blackmagic PYXIS Monitor
• Blackmagic PYXIS Clip On Sunshade
• Blackmagic PYXIS Monitor Swivel Mount
• Blackmagic PYXIS Monitor Fixed Mount and screws
• Blackmagic PYXIS Monitor Dovetail Shoe and screws
• Blackmagic URSA Cine EVF Bracket rod mount
• Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
• 2 x short 15mm carbon fibre rods
• 1 x USB-C viewfinder cable
• Welcome wallet with QR code for software download
• Blackmagic Design Sticker
