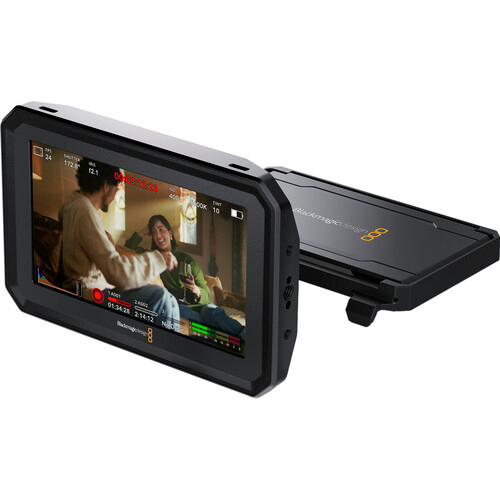

Blackmagic Design PYXIS Monitor - BMD-CINEURSABB/AM

A new cinematic monitoring solution for Blackmagic PYXIS cameras with bright HDR touchscreen, camera control and multiple mounting points!

Blackmagic PYXIS Monitor is a versatile 5? HDR touchscreen monitor with full camera control that can be mounted almost anywhere! It provides the same controls and overlays as PYXIS’ built in LCD, so it’s perfect to use when rigging or accessories block the internal display. Multiple mounting points make it easy to attach on any camera rig and use as a large viewfinder for easier focusing and framing. Or use it as an assist station so crew can frame and monitor shots from any position on set! There are 3 customizable buttons for quick access to zebra, focus assist, false color and more. Plus, the bright 1500 nit display and removable sunshade ensure visibility, even in sunlight!

• Display Size: 5 inch.
• Display Resolution: Full 1920 x 1080.
• Display Type: LCD capacitive touchscreen.
• Display Brightness: 1500 nits.
• Frame Rates: Up to 60fps.
• Tally: Rear facing LED tally light.
• Accelerometer: Automatically rotates image when monitor mounted upside down.
• Control:
• On Screen Controls
• Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power,
• Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
• Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
• Function Button Presets
• FPS: Preset Value
• Iris: Preset Value
• WB: Preset Value
• ISO: Preset Value
• Shutter: Preset Value
• Function Button Toggle
  • Clean Feed
  • Status Text
  • Display LUT
  • Frame Guides
  • Focus Assist
  • False Color
  • Zebra
  • Grid
  • Safe Area Guide
  • Off Speed Rec
  • Focus Zoom
  • Focus
  • Record
  • Auto White Balance
  • Color Bars
  • Playback
  • False Color + Zebra
  • OIS
  • Stream
  • Still
• Mounting
Mounting Points:
• 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
• 2 x M4 bottom mounting points.
• 1 x 1/4-20 side mounting point with ARRI locating pin pattern.
• 2 x M4 side mounting points.



• What's In The Box
• Blackmagic PYXIS Monitor
• Blackmagic PYXIS Clip On Sunshade
• Welcome wallet with QR code for software download
• Blackmagic Design Sticker
