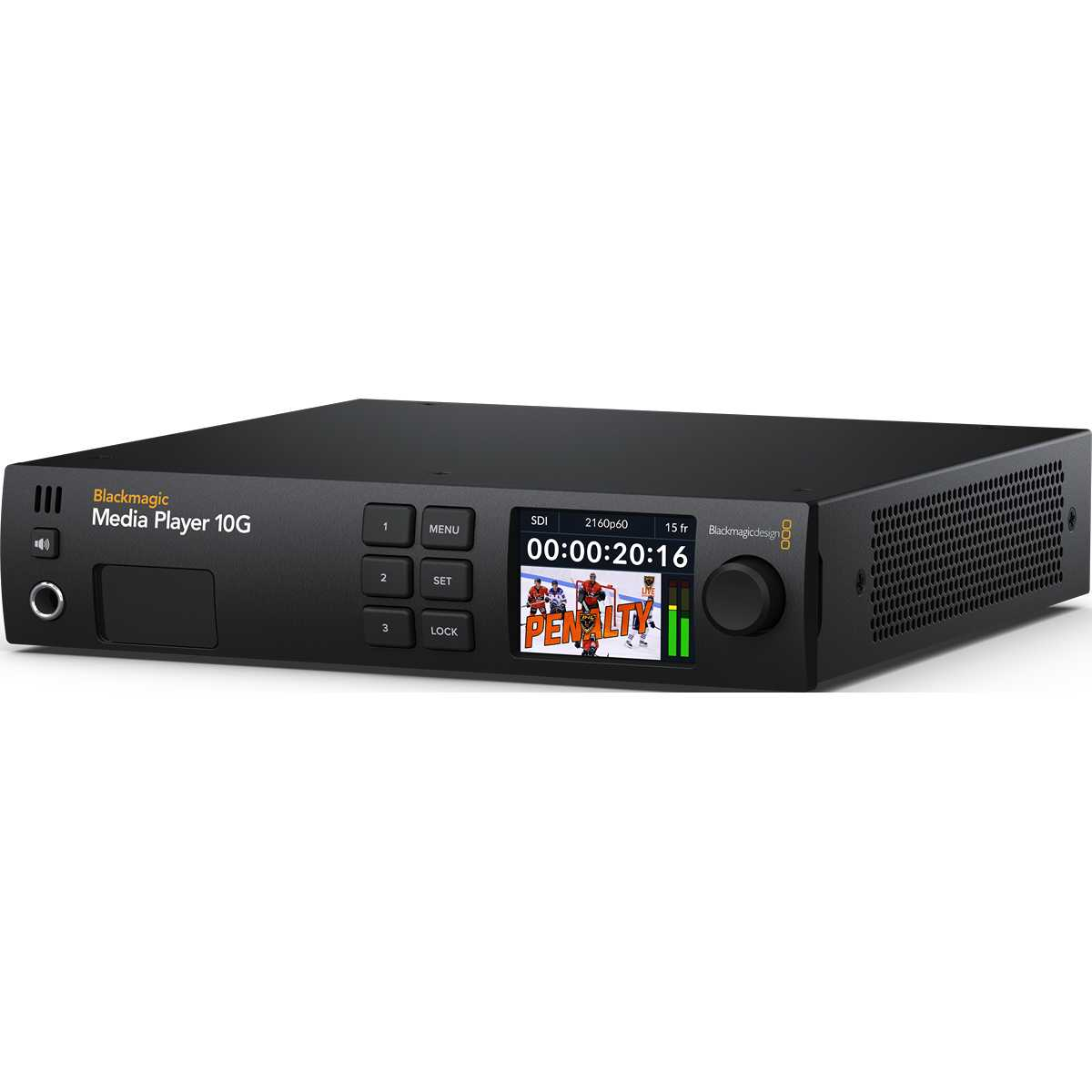

Blackmagic Design Media Player 10G - BMD-BDLKULSTMP010G

Blackmagic Design’s Media Player 10G is a powerful capture and playback solution packed with the latest broadcast technology! You get dual 12G-SDI outputs for fill and key playback, 12G-SDI capture and 10G Ethernet that lets customers use DaVinci Resolve 19 as a media player and replay solution for the live production and broadcast markets, all over a single Thunderbolt connection.

• SDI Video Inputs: 1
• SDI Fill Outputs: 1
• SDI Key Outputs: 1
• SDI Loop Outputs: 1
• SDI Extended Desktop Outputs: 1
• SDI Monitor Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• HDMI Extended Desktop Outputs: 1
• HDMI Monitor Outputs: 1
• Analog Audio Outputs: 2 channels of professional balanced analog audio with 3-pin XLR connectors; 1 x 6.35 mm headphone jack.
• SDI Audio Inputs: 16 Channels embedded in SD/HD/2K/UHD/4K.
• SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/UHD/4K.
• HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K.
• HDMI Audio Outputs: 8 Channels embedded in SD/HD/UHD/4K.
• Device Control: 1 x Sony™ compatible RS-422 deck control input port.
• USB: 1 x USB C 3.1 Gen 1 (up to 5 Gb/s).
• Computer Interface:
• 2 x Thunderbolt™ 3 (Mac OS, Windows and Linux)
• 1 x USB C for keyboard, mouse and other USB devices
• Ethernet
• 1 x 10Gb/s RJ 45 connector supporting 1000/10G BASE T.

• Video Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

• Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade: Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

• DaVinci Resolve
• Fusion

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1.
• SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
• Multiple Rate Support: SDI video connections are switchable between SD/HD/2K/UHD and 4K.
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Color Precision:
• 8, 10, 12-bit RGB 4:4:4 in modes up to 4Kp30 and
• 8, 10-bit YUV 4:2:2 in all modes.
• SDI Color Space: REC 601, REC 709 and REC 2020
• HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics.

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• HDMI Video Sampling: 4:4:4, 4:2:2 and 4:2:0
• HDMI Color Precision: 8, 10 and 12-bit
• HDMI Color Space: REC 601, REC 709 and REC 2020
• HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics.
• DR Configuration: HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
• Multiple Rate Support: HDMI video connections are switchable between SD/HD/UHD and 4K.
• Hardware Frame Buffer: v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), Ay10 (10 bit YUVA), R12B, R12L (12 bit RGB).

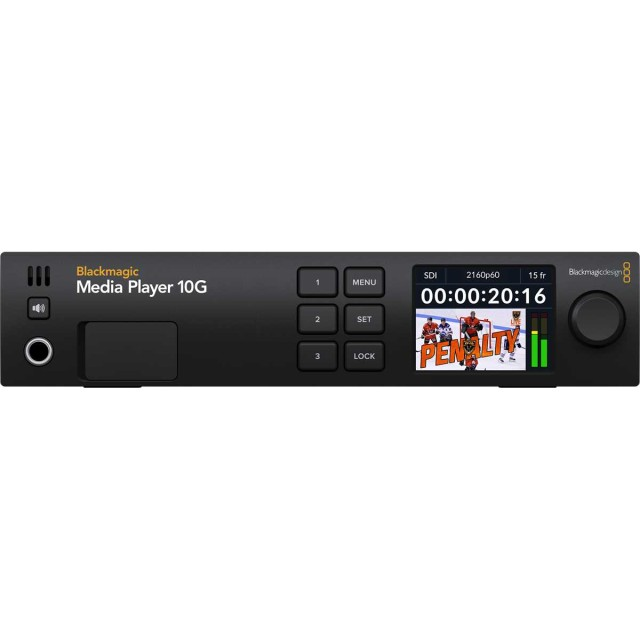

• Built in Control Panel: 6 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button.
• External Control: RS-422 deck control input for remote control of software. Also supports Advanced Media Protocol.

• Half rack unit width, 1 rack unit height.

• Mac 13.0 Ventura,
• Mac 14.0 Sonoma or later.
• Windows 10, 64-bit.
• Windows 11.

• Power Supply: 1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket.
• Power Usage: TBA

Environmental Specifications

• Operating Temperature: 5° to 40° C (41° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non condensing

• Blackmagic Media Player 10G
• Welcome wallet with QR code for software download

• 3 Year Limited Manufacturer's Warranty.
