Blackmagic Design DeckLink Mini Recorder 4K - BMD-BDLKMINIREC4K

DeckLink Mini Recorder 4K

Low profile PCIe capture card featuring 6G-SDI and HDMI 2.0a for all formats up to 2160p30, including HDR!

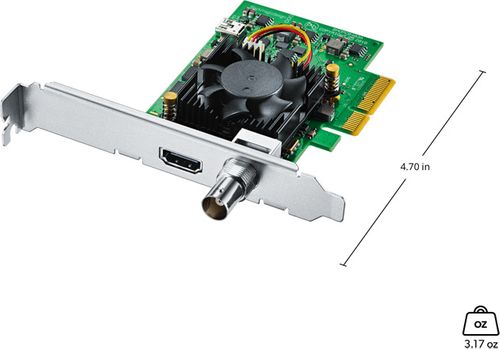

DeckLink Mini Recorder 4K is a low profile PCI Express capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to 2160p30 on your computer! The SDI and HDMI inputs automatically detect and switch between all video formats. You even get high dynamic range recording and metadata over HDMI. The DeckLink Mini Recorder 4K is perfect for integrating into mobile live capture environments, broadcast trucks and more! You can even develop your own custom capture solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.

Connections

1 x 10-bit SD/HD/Ultra HD switchable.

16 channels embedded in SD, HD, Ultra HD.

1 x HDMI 2.0a connector.

8 Channels embedded in SD, HD, Ultra HD.

PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

Software

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Firmware built into software driver. Loaded at system start or via updater software.

PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Software Applications

• DaVinci Resolve
• Adobe Premiere Pro CC
• Avid Media Composer
• Adobe Photoshop CC

Other supported applications include: Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D.

Video Standards

525i59.94 NTSC, 625i50 PAL

• 720p50, 720p59.94, 720p60
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 1080i50, 1080i59.94, 1080i60

• 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
• 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF

• 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p ^{*SDI only.}

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.

RP 188/SMPTE 12M-2 and closed captioning.

Television standard sample rate of 48 kHz and 24 bit.

4:4:4 & 4:2:2

8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.

REC 601, REC 709

4:4:4, 4:2:2 & 4:2:0

HDMI 2.0a supports Deep Color and HDR.

Up to 12-bit (Deep Color)

HDMI and SDI video connections are switchable between SD/HD/2K and 4K.

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

Hardware based real time.

Software based down conversion during video capture.

Software based up conversion from SD to HD on capture. Selectable between 4:3 pillarbox or 16:9 anamorphic.
