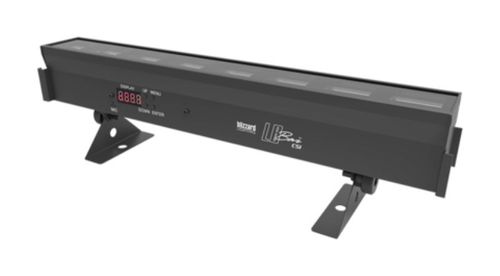

Blizzard Lighting LB BAR CSI

9x 3W 393~396nm UV LEDs

LB BAR™ CSI is a linear UV wash fixture with 9x 3W LEDs, and is perfect for clubs, DJs, or any indoor application. It has a 4-button LED control panel which allows control of 0-100% UV output level, 0-20Hz strobe, standard dimming plus 4 selectable 32-bit dimming curves, and it is totally silent due to its natural convection cooled design with no fans.

LB Bar™ CSI is equipped with locking end alignment clips to allow seamless multi-fixture light output with no color breaks. It is light weight, solidly built, and also offers dual mounting brackets with locking knobs, IEC power in/out, and 3-pin DMX input/output connections.

• 9x high output 3-watt UV LEDs
• Strobe FX + wide 110° beam angle
• Compact design w/ability to link multiple fixtures
• User selectable 1 or 3 DMX channel modes
• Variable electronic dimming
• Strobe effects (1-20Hz)
• Standalone, master/slave and DMX modes
• 4-button LED control panel for easy programming
• End-to-end fixture locking connections
• Standard plus 4x 32-bit dimming curves
• Natural convection cooled, totally silent operation
• 3-pin male/female XLR input & output
• IEC power In/Out connections

• 9* 3W UV LEDs
• Beam Angle: 110°
• Wavelength: 393~396nm

• Width: 16.4” (415 mm)
• Depth: 2.3” (57 mm)
• Height: 4.3” (10.9 mm)
• Weight: 1.7 lbs. (.75 kg)

• Protocol: USITT DMX-512
• 1/3-channel DMX modes
• DMX512, M/S, standalone mode
• 3-pin XLR In/Out connections
• 4-button LED control panel

• 110-240VAC, 50-60 Hz
• Power Consumption: 24W, .27A, PF: .65

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs
