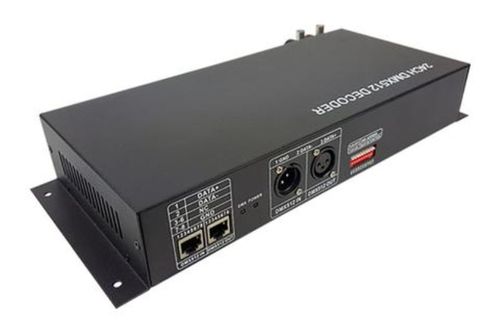

Blizzard Lighting Komply DMX-24

24CH (8XRGB) DMX DECODER

Komply DMX-24 is a 24-channel (8x RGB) DMX decoding driver designed to convert a universal DMX512 digital signal to PWM signal. It can be controlled by DMX512 console, with 256-level gradation. It features 24 total output channels, 2A per channel, RJ45 In/Out, DMX In/Out, and is dipswitch addressable.

• Converts DMX512 signal to PWM signal
• 1~24 output channels (8x RGB)
• 256-grayscale levels per channel
• RJ45 + DMX input/output
• 7 static colors + auto in standalone
• Dipswitch addressable
• Easy to mount and configure
• Certifications: CE, Rohs

• 24CH DMX512 decoding driver
• DMX In/Out: RJ45 and XLR
• Grayscale: 256/channel

• Dimensions: 340 x 142 x 57mm
• Weight: 3 lbs

• Input voltage: 12V to 24V
• Input DMX Signal: DMX512/1990 digital
• Output: 24 channels @ up to 2A per channel
• Output power: 12V:<576W, 24V:<1152W

• Working temperature: -24 to 60C

• 2-year limited warranty
