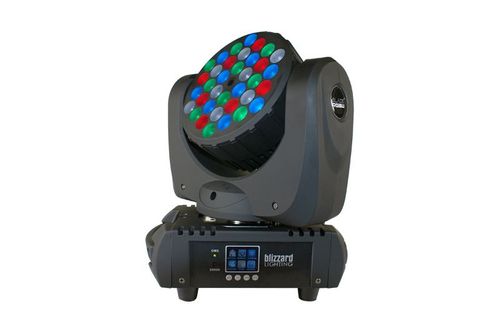

Blizzard Lighting Blade RGBW

Blizzard Lighting Blade RGBW

Part Number: 123463
Our Price: $659.99
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


A Cut Above with Knife-Edge Optics

Does it get any sharper than a 1.1 degree beam? We think not. The Blade™ RGBW moving head beam combines blinding output and surgical precision from its 36x 5-Watt CREE® RGBW LEDs. Coupled with its 1.1 degree beam angle optic system, the Blade™ is an incredible aerial performer packed in a tiny, lightweight package.

It easily converts from a dazzling beam fixture to a versatile 8.8-degree soft-edged wash by attaching the included diffuser lens. It's a snap to program and easy on the eyes thanks to its full-color LCD-TFT display with icon-based navigation. It also offers powerCON® compatible power in/out, 16-bit dimming, pan/tilt correction, and fixture ID addressing.

Key Features
  • 36x 5-watt R/G/B/W CREE LEDs
  • Pan: 540º/ Tilt: 240º (8-16 Bit Resolution)
  • 1.1° beam angle + 8° diffuser lens


  • Luminous Intensity: 69,000 lux @ 1M (10,200 lux with diffuser), 41,000 lux @ 2M (2,920 lux with diffuser)
  • Light source: 36x 5-watt R/G/B/W CREE® LEDs
  • Beam Angle: 1.1° (8° with diffuser lens)
  • Pan: 540º (8-16 Bit)
  • Tilt: 240º (8-16 Bit)
  • Protocol: USITT DMX-512
  • DMX channels: 11 or 15 channels
  • 3-pin DMX input/output
  • Operating modes: standalone, M/S, sound active, color preset
  • Operating voltage: 100-230VAC, 50/60 Hz
  • Power consumption: 148W, 1.84A
  • Fuse: 4A 250V
  • 2-year limited warranty, does not cover malfunction caused by damage to LEDs
Dims & Weight
  • 13.4" L x 9.5" W x 14.8" H
  • 11.5 lbs
