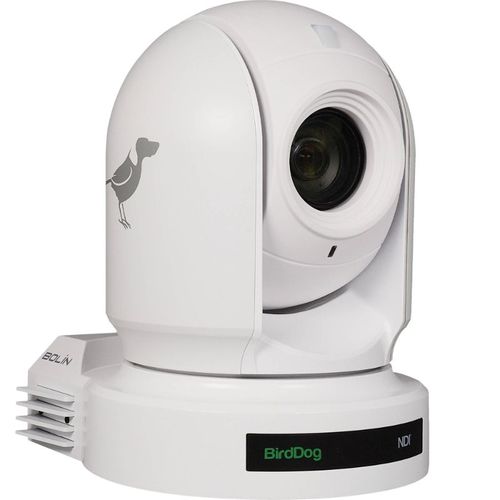

BirdDog 1080p NDI PTZ Camera, White - P200W
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
NDI® has never looked so good.
Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and features independent, live triple outputs in SDI, HDMI and Full NDI®.Full NDI®. No compromises.
In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P200 is a Full NDI® camera.Tally light that just works.
NDI® has tally information built into the metadata so when P200 is connected to an NDI® enabled switcher the tally light on the front of the unit to ensure your on air talent will always know which camera is live. There is no configuration required; it just works.Sony Sensor. You deserve the best.
The best pictures come from the best silicon. P200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.Sony Image Module. Optics done right.
Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. P200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.BirdDog and Bolin. BFF’s.
Sometimes a partnership is so strong it creates more than the sum of the individual parts. BirdDog and Bolin have joined forces to bring the World’s Best range of NDI PTZ gear to market. With Bolin’s commitment to using the highest quality Sony Sensors and their ability to build weatherproof cameras BirdDog knew there was only one PTZ partner that shared BirdDog’s vision of bringing to market the highest quality products at reasonable prices. Through BirdDog’s NDI know-how and Bolin’s unrivalled PTZ engineering pedigree an unbreakable partnership has formed. Batman and Robin. Mulder and Scully. Joanie and Chachi. You get the idea.Triple output. NDI®, SDI and HDMI.
With NDI®, SDI, and HDMI simultaneous outputs the P200 is ready to go live with your full NDI® workflow today or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232. No matter which way you like to work, you can rest easy in the knowledge that P200 has you covered for all workflow situations.30x Optical zoom. Over there is now over here.
Never miss a shot again. 30x optical zoom brings the whole world to you. Now you can zoom in to the other end of a football game and stay locked in on the action. The incredible optical zoom function makes P200 perfect for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.PoE or DC. You have the power.
P200 can be powered by Power over Ethernet (PoE) or from the included power adapter.PTZ Keyboard. Take control.
Combine P200 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P200 over NDI® or by RS422 / RS232 when using in SDI mode.RESTful API. DIY automation.
Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.Adaptive bit rate. Slide your way to glory.
Full NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes. With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps.BirdDog Together.
BirdDog are pleased to offer free Central Pro and Comms Pro worth $1490 to all our Educational, House of Worship, and Not for Profit customers.Free Software Tools.
- Central Lite. - Team up Central Lite with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.
- Cam Control. - Cam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full screen output monitor and then copy across multiple cameras to colour match in seconds.
- Comms Lite. - Comms Lite is your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.
|IMAGE SENSOR||1 / 2.8 inch CMOS 2.13MP|
|HORIZONTAL ANGLE OF VIEW||63.7° (W) – 2.3°(T)|
|APERTURE||F1.6 (W) – F4.7 (T)|
|MIN. ILLUMINATION||Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)|
|SHUTTER SPEED||1/1 – 1/10000s|
|FOCUS||Auto, Push, Manual|
|WHITE BALANCE||Auto, Indoor, Outdoor, Manual, OPW, ATW|
|EXPOSURE||Auto, Manual, Shutter/Iris Priority|
|PAN MOVEMENT||Horizontal: ±350º continuous pan (Zoom Adaptive Speed Range: 0.05º?100º/S )|
|TILT MOVEMENT||Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°?50°/S)|
|PRESET POSITIONS||128 (Speed adjustable: Up to 150°/s)|
|PRESET SPEED||0-5 Level adjustable|
|OPERATING TEMPERATURE||-10 – +50 (°C)|
|VIDEO OUTPUT||NDI /HDMI /SDI|
|VIDEO FORMATS||1080p 60, 59.94, 50, 29.97, 25|
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
|AUDIO I/O||3.5mm Audio In (Stereo)|
3.5mm Audio Out (Stereo)
|IP PTZ CONTROL||NDI Control (auto configuring)|
|SERIAL PTZ CONTROL||2x RJ45: RS232/RS422/RS485|
|SERIAL CONTROL PROTOCOL||VISCA / Pelco D|
|POWER & DIMENSIONS|
|POWER INPUT||12v DCm, PoE+ (IEEE 802.3at)|
|VIDEO COMPRESSION||Full NDI – i-frame high quality low latency NDI for production|
|NETWORK PROTOCOL||NDI – Discovery, configuration and control|
|WEB CONTROL INTERFACE||Full control via Web/Mobile UI including Scene presets|
