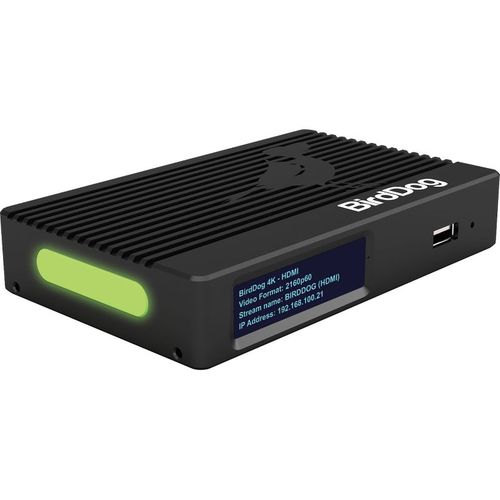

BirdDog 4K NDI Converter - 4K HDMI

BirdDog 4K NDI Converter - 4K HDMI

Part Number: 4K HDMI
Our Price: $895.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

The 4K HDMI is an NDI converter featuring one HDMI 2.0 Input, one HDMI 2.0 Output, and one 12 G SDI output.

Next Level NDI® Tools.

Following on from the award winning HD NDI® products, the 4K Family has been engineered from the ground up for real-world users. Built around BirdDog’s custom NDI® silicon chip and housed in an aircraft grade aluminium case, features include 12G SDI and HDMI 2.0 inputs and outputs, built-in cross converter, SFP+ port for 10GbE connectivity, active loop outs, audio intercom system, NDI® tally system, PoE, and compatibility with BirdDog’s Comms Pro and Central Pro apps.

Encode & Decode up to 4Kp60.

With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI® has never been easier.

12G & HDMI 2.0 connections.

All SDI connectors on the 4K line are 12G SDI, including all four SDI connectors on 4K Quad. All the HDMI connectors are 2.0 for maximum compatibility with your sources and destinations.

SFP+ for 10GbE & long range.

Industry standard SFP+ connection allows for short, medium, and long range connections over fiber and supports Ethernet protocols from 1GbE to 10GbE.

NDI Tally that just works.

A full Tally system is built right into the 4K Family and it requires zero configuration. Includes a built-in large Tally light for your on-air talent to easily see which camera is live, plus user selectable Tally borders on loop out.

Cross Converter.

All 4K products include a built in cross converter and of the 12G SDI inputs can be looped out the HDMI 2.0 port and any of the HDMI 2.0 inputs can be looped out the 12G SDI.

PTZ Control.

With the optional USB to Ethernet dongle you can control any PTZ camera that supports NDI®, NDI|HX, or Visca over IP.

RESTful API. DIY automation.

Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.

Adaptive bit rate. Slide your way to glory.

Full NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes. With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps.

BirdDog Together.

BirdDog are pleased to offer free Central Pro and Comms Pro worth $1490 to all our Educational, House of Worship, and Not for Profit customers.

Free Comms Lite. Upgrade to Comms Pro.

4K Family include free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. Comms Pro is just $495.

Distribute NDI® content everywhere. Just add Central.

BirdDog Central is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI, Mini or 4K Family to decode NDI® back to SDI or HDMI.

Specifications

4K HDMI4K 12G-SDI4K QUAD
SUPPORTED VIDEO FORMAT
UHD 3840x216023.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00
HD 1920x1080p23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00
HD 1920x1080i50.00i, 59.94i
HD 1280x720p50.00p, 59.94p, 60.00p
VIDEO I/O CONNECTIVITY
HDMI 2.0 Input--
HDMI 2.0 Output
12G SDI Input--
12G SDI Output-
12G SDI Selectable Input/Output--4
AUDIO INPUT
HDMI2Ch, 48kHz--
SDI-2Ch, 48kHz2Ch, 48kHz
3.5mm AUDIOMicrophone/line input
AUDIO OUTPUT
HDMI2Ch, 48kHz
SDI2Ch, 48kHz
3.5mm AUDIOStereo Headphone/line output
Downconvert NDI output4K -> 1080p, 1080p -> 720p
VIDEO CODEC SUPPORT
NDI (Full bandwidth i-frame compression)
DISPLAY
Integrated 4-line OLED Status Display
Integrated Multiviewer--HDMI OUT
TALLY
Onboard Bi-color Tally indicator
Selectable Tally indicator on video loop outputs
NETWORK CONNECTIVITY
Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet)
Open SFP+ Cage (10gb SFP+ Adapters sold separately)
Embedded Web configuration Panel
WEIGHTS & DIMENSIONS
Size135x85x25mm
Weight260g260g320g
POWER
DC InputDC 12v / 16w
PoE (Power over Ethernet)PoE+ 802.3at
EXTERNAL INTERFACE SUPPORT (Requires Optional Cables)
USB to RJ45 for additional network in device support
USB to RJ45 for VISCA over IP PTZ control
USB to Serial PTZ control (RS232)
USB ISO recording
