Intelix Passive VGA Extender Set (Transmitter and Receiver) - AVO-VGA

Intelix Passive VGA Extender Set (Transmitter and Receiver) - AVO-VGA

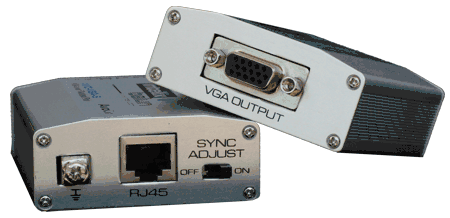

Tired of pulling bulky VGA cable? Tired of wasting money on expensive signal boosters and custom wire termination kits? Introducing the Intelix AVO-VGA, the first completely passive VGA balun set with built-in skew correction. The AVO-VGA transmits VGA video up to 450 feet over standard unshielded twisted pair cable -- no power required. Plus, built-in skew compensation ensures your whites are whiter and your brights are brighter. The AVO-VGA is ideal for education, government, house of worship, corporate, residential, and any other application requiring extended VGA video distribution.

Example System 1: A computer is connected to a remote monitor via an AVO-VGA balun set and unshielded Cat 5. The AVO-VGA send unit connects to the computer via a VGA cable. A second VGA cable connects the AVO-VGA receive unit to the remote monitor.

Max Distance:

VGA (640 x 480): 450 feet
SVGA (800 x 600): 350 feet
XGA (1024 x 768): 250 feet
SXGA (1280 x 1024): 200 feet


Bandwidth

DC to 60 MHz
Power No power required
Impedance
Input: RGB 75 ohms
Output: RGB 100 ohms

Input Signals

Video: 1.1 Vp-p
Sync: TTL standard, 300 kHz max bandwidth
Insertion Loss Less than 3 dB per pair over the frequency range
Return Loss -15 dB max from DC to 60 MHz

Common Mode Rejection

15 kHz: -60 dB max
100 kHz to 10 MHz: -40 dB max
100 MHz: -20 dB max

Grounding

Grounding screw for optional use Cable Cat 5, Cat 5e, Cat 6, and Cat 7 compatible

Send Device Connectors

One (1) female HD15 to one (1) shielded RJ45
Receive Device Connectors

One (1) female HD15 to one (1) shielded RJ45
Enclosure Shielded metal housing
Dimensions 4.3" x 2.5" x 1.0"
Shipping Weight 1.0 lbs.
Pin Out
Blue: 7 & 8
Red: 1 & 2
Green: 4 & 5
Sync: 3 & 6
Temperature
Operating: 32 to 131 degrees F
Storage: -4 to 185 degrees F
Humidity: up to 95%
Warranty 2 years
Part #
AVO-VGA: pair of AVO-VGA baluns in retail-ready packaging Included Accessories (1) 3' male HD15 to male HD15 VGA cable
