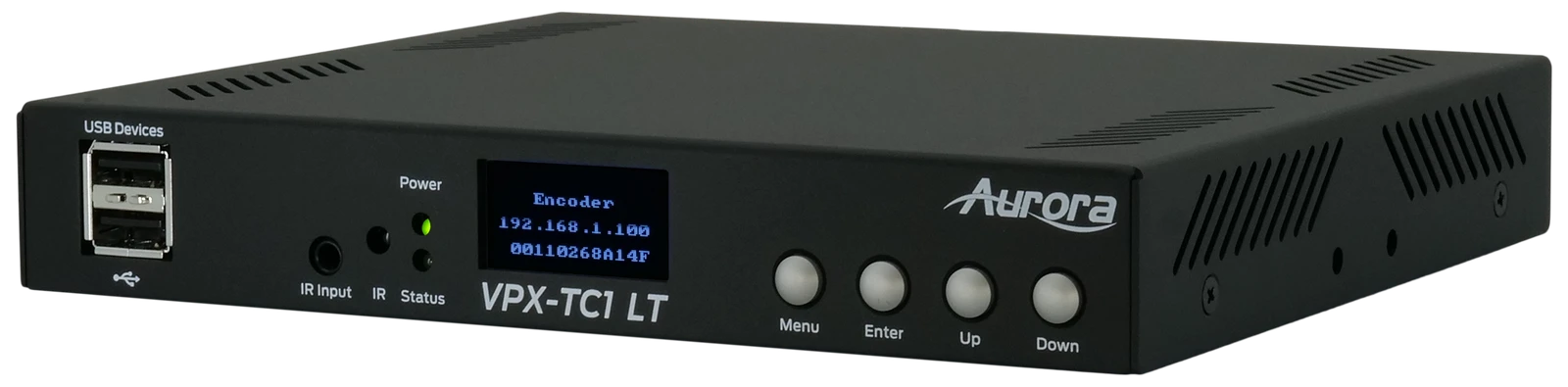

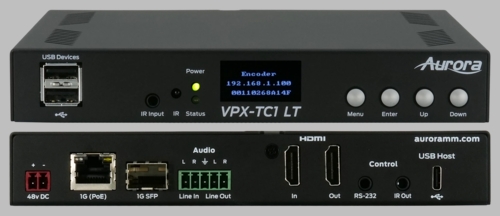

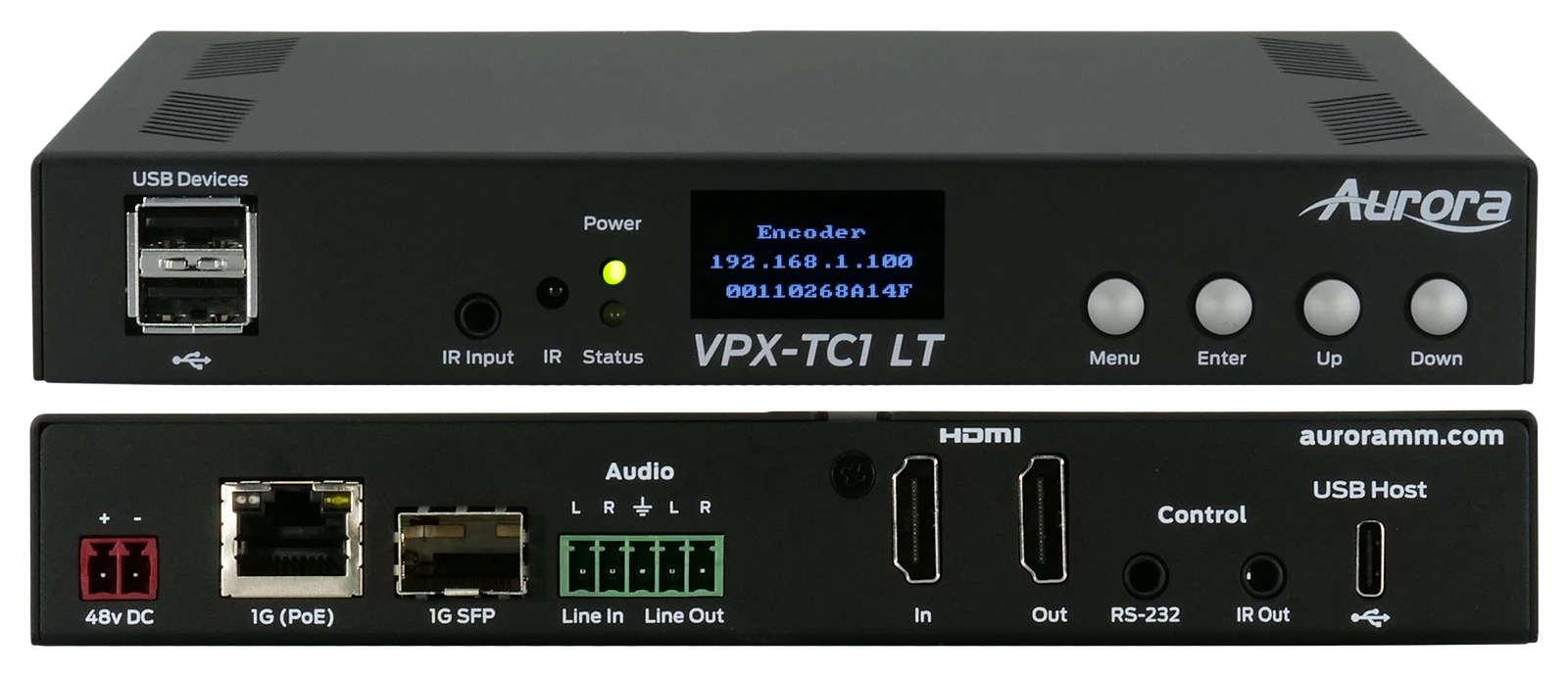

Aurora Next-gen 4K30 4:4:4 1Gbps AV-over-IP transceiver box utilizing Aurora’s Mimix™ CODEC technology (RJ-45+& SFP slot) - VPX-TC1-LT

The VPX-TC1-LT is the low-cost version of the VPX-TC1-PRO utilizing the same Aurora Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K30 4:4:4 over 1G networks. It has zero frame (1.78ms) of latency and seamless switching for fast lag free content. Power consumption is important as the VPX-TC1-LT uses as little as 6.4 watts. It does this with no fan and a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems.

InfoComm 2024 ReAX Room Demo Video

Audio, video, data, and control can be sent securely to one or many units using off-the- shelf 1G RJ-45 Ethernet switch. When the VPX-TC1-LT is set up to be a transmitter, the HDMI input becomes the source, and the HDMI output becomes a loop out.

When set up as a receiver, a user can select the local HDMI input or an IP streaming source. Seamless switching of the sources further enhances the presentation. Regardless of how the VPX-TC1-LT is set up, the audio can be de-embedded at any location, and/or be sent to or received from a Dante® enabled device.

The USB is also flexible, working as a KVM and/or a high-speed data transfer for memory sticks & another port just for cameras. To keep the system friendly, an OSD and integrated web server are available for easy navigation and setup of features. The VPX LT model is fully compatible with the VPX PRO models.

Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1-LT.

• 4K30 4:4:4 UHD 120m over 1G CAT 5e
• One Frame Latency (16.6ms)
• Low Power Fanless Design
• Seamless Switching
• Video Wall with Image Rotation
• 1G LAN PoE and SFP for Fiber or Second RJ-45
• 1 HDMI Input, 1 HDMI Output
