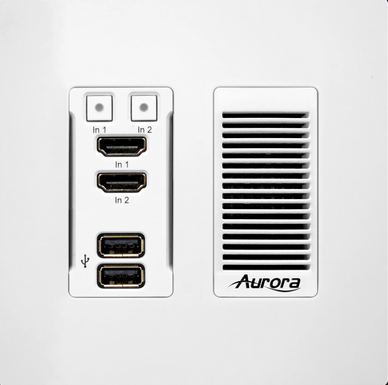

Aurora 3rd gen. 4K 10Gbps SDVoE AV-over-IP transmitter 2-gang wall plate (ASIC model, copper version, white) - IPX-TX3A-WP2-C-W

The IPX-TX3A-WP2-C provides one of the most advanced IP Streaming solutions on the market utilizing SDVoE technology. The 2-gang transmitter wallplate has zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT+ platform. The IPX-TX3A-WP2-C has an option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. 2 HDMI inputs allow you to switch between local sources. Seamless switching of the sources further enhances the presentation. As with all IPX devices, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required.

Note: The selected network switch needs to support: 10Gbps, Non-blocking IGMP.

USE THE FOLLOWING PART NUMBERS FOR ORDERING: IPX-TX3A-WP2-C-W: 10G Copper version, white IPX-TX3A-WP2-C-B: 10G Copper version, black

Power Supply NOT included, please order separately.

• Zero Compression/Latency 4K streaming over 10G Copper Network
• 2-gang wall plate
• (2) HDMI inputs
• Transmitter only
