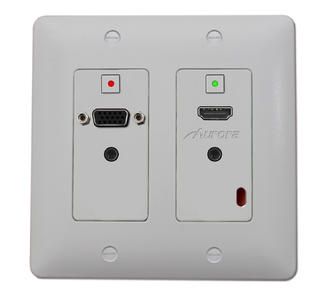

Aurora 2 input HDBaseT™ transmitter wall plate (330/600-ft VGA & HDMI, white) - DXW-2-W

The DXW-2 is a 2 gang multi-input Decora™ style wall plate with HDBaseT CAT extension. Its ability to convert VGA (YPbPr, S-Video, Video) with audio to HDMI locally and transmit the signal up to 600ft sets this unit apart from the competition. The sources are selectable with the buttons on the wall plate, DXB-8 1 gang 8 button panel, or remotely via RS-232 commands sent through the matching receiver device (DXE-CAT-RX, DXM Matrixes, etc). The DXW-2 can be remotely powered by the receiver device and also has the ability to receive IR signals via the sensor window on the front of the unit and pass them to the receiver unit for remote control of IR controllable devices. Overall, the DXW-2 saves money and simplifies an installation by combining the functionality of a switcher, converter, and extender into one neat package. USE THE FOLLOWING PART NUMBERS FOR ORDERING: DXW-2-W (White) DXW-2-B (Black) Power Supply NOT included, please order separately.

• 2-gang Wall Plate Transmitter with 1 HDMI®/DVI input & 1 VGA/YPbPr input each with its own analog audio input
• Input selectable via the front plate, auto-detect or via RS-232 & passed over a single CAT cable
• Supports RS-232 & IR extension with Built-in IR Receiver
• Wall Plate compatible with any HDBaseT™ Compliant Receiver device or display
