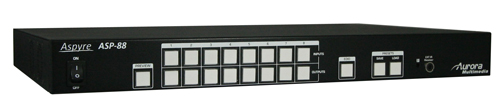

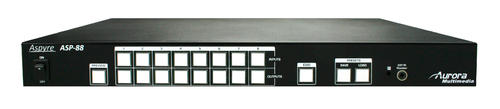

Aurora 8x8 HDMI Matrix 1.3c - ASP-88

Aurora 8x8 HDMI Matrix 1.3c - ASP-88

The ASP-88 8x8 HDMI Matrix offers the Power and Flexibilty you need at a cost effective price. Route high definition video sources and multi-channel digital audio (up to 7.1 channel) from any of the eight(8) HDMI inputs to the any of the eight(8) HDMI outputs at the same time! The ASP-88 is well suited for use in residential, commercial, education, and digital signage applications and is the latest addition to the expanding Aurora Multimedia Aspyre series.

Benefits:

• State-of-the-art Silicon Image (Founder of HDMI) chipset embedded for upmost compatibility and reliability


• HDMI 1.4a 3D compliant


• HDCP compliant


• Allows any source to be displayed on multiple displays at the same time


• Allows any HDMI display to view any HDMI source at any time


• Supports 7.1 channel digital audio


• Supports default HDMI EDID and learns the EDID of displays if necessary


• Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively


• Fast response time - 2~5 seconds for channel switch

Video Output
Bandwidth
Single-link 225MHz [6.75Gbps]

Resolution
480i / 480p / 720p / 1080i / 1080p60 8-12 bit color

Connectors
Type A [19-pin female], RS-232 DE-9 [9-pin D-sub female], USB Standard type-B [square shape], 3.5 mm IR

HDCP Compliant
Yes



Power
Power Supply
AC Power 100-240V

Power Consumption
60Watts [max]



Physical
Operating Temperature & Humidity
32~104°F [0~40°C], 20~90% RH [no condensation]

Dimensions (LxWxH)
11.4" x 17" x 1.7" [290 x 440 x 44mm]

Weight
7.2 lbs [3.25kg]
