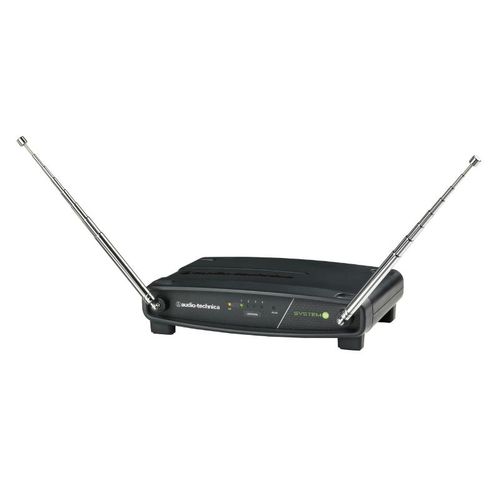

Audio Technica System 9 wireless system - ATW-R900A

Description

Receiver for System 9 wireless systems.

Type	VHF high band
Operating Frequencies	169.505, 170.245, 171.045, and 171.905 MHz
Modulation Mode	FM
Maximum Deviation	±10 kHz
Dynamic Range	≥90 dB (A-weighted), typical
Frequency Response	80 Hz to 13 kHz
Total Harmonic Distortion (THD)	<1% (at 1 kHz, ±10 kHz deviation)
Receiving System	Non-diversity, single-channel, dual-antenna system
Image Rejection	50 dB minimum
RF Sensitivity	20 dBu V at 60 dB S/N ratio (50 Ohms termination)
