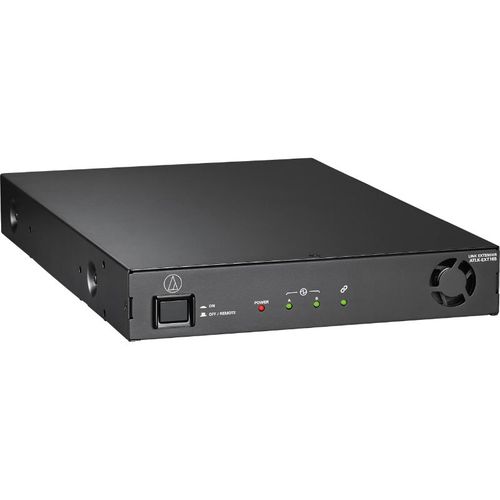

Audio Technica LINK Extender - ATLK-EXT165

Audio Technica LINK Extender - ATLK-EXT165

Part Number: ATLK-EXT165
Our Price: $1,039.00
Availability: Usually ships the same business day


Audio-Technica Link Extender ATLK-EXT165

The ATLK-EXT165 has two RJ-45 ports for connection to ATUC-50CU/IRCU/IRCUDAN, ATUC-50DU/IRDU, ATUC-50INT, ATUC-50IU, ATDM-0604 and other compatible products. Supplies DC +48V power. Mode switch for selection of remote control via ATUC-50CU/IRCU/IRCUDAN or standalone power control. Half-rack chassis. For wired or wireless systems.

Key Features
  • Allows cable-run extension of discussion/conference systems and mixers equipped with Audio-Technica LINK RJ-45 ports
  • With ATUC-50 Digital Discussion System, supports use of up to 100 discussion units per control unit
  • Supplies DC +48V power to connected devices, enabling extended cable runs
  • LED indicators for power on/off, power supply status, current-overload detection
  • Power overload protection: unit cuts power when drawn current is greater than 2.6A
  • Includes AT8649 table mount kit and power cable


ConnectionsOutputs: LINK power status | Chain: DU port A/B
Power SupplyAC 100V-240V 50/60Hz
Power Consumption15W-160W (MAX)
Operating Temperature Range0-40℃
Operating Humidity25-85%
