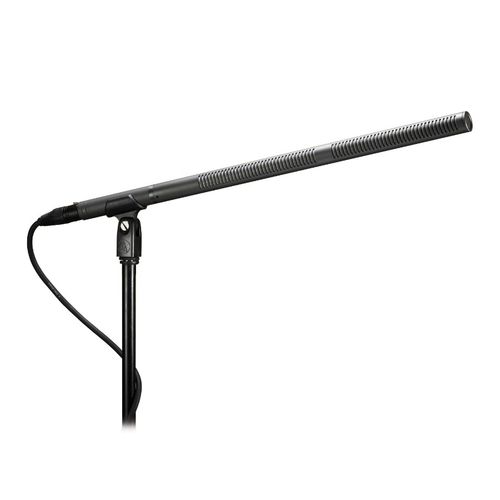

Audio Technica Line + Gradient Microphone - AT8015

Audio Technica Line + Gradient Microphone - AT8015

Part Number: AT8015
Our Price: $299.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Line + Gradient Condenser Microphone

Designed for video production and broadcast (ENG/EFP) audio acquisition, the AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.

Key Features
  • Designed for video production and broadcast (ENG/EFP) audio acquisition
  • Provides the narrow acceptance angle desirable for long-distance sound pickup
  • Excellent sound rejection from the sides and rear of mic
  • Switchable low-frequency roll-off
  • Operates on battery or phantom power
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances

Specifications

ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNLine + gradient
FREQUENCY RESPONSE40-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITYPhantom: 38 dB (12.5 mV) re 1V at 1 Pa
Battery: 39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCEPhantom: 250 ohms
Battery: 300 ohms
MAXIMUM INPUT SOUND LEVELPhantom: 132 dB SPL, 1 kHz at 1% T.H.D.
Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)Phantom: 110 dB, 1 kHz at Max SPL
Battery: 98 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO72 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 2 mA typical
BATTERY TYPE1.5V AA/UM3
BATTERY CURRENT / LIFE0.4 mA / 1200 hours typical
(alkaline)
SWITCHFlat, roll-off
WEIGHT195 g (6.9 oz)
DIMENSIONS460.0 mm (18.11") long,
21.0 mm (0.83") diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type
ACCESSORIES FURNISHEDAT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8135 windscreen; battery; protective carrying case
AUDIO-TECHNICA CASE STYLESG3
