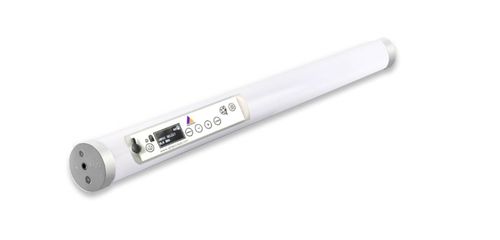

Astera Film Lighting Tube - HELIOS TUBE

Film lighting LED tube for TV and broadcasting

Helios Tube is an RGB – Amber – Mint LED lighting Tube that has all the features of the popular Titan Tube while offering a smaller format. It allows mounting in areas where a Titan Tube wouldn’t fit and also increases portability. This LED lighting Tube has 8 pixels, half the brightness of the Titan tube and just over half its length. Colors and brightness are perfectly matched to those of the Titan Tube`s.

• Talkback+ - Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
• Seamless Runtime - Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
• TruColor Calibration - Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
• Effects - Quickly build programs out of colors and effects, trigger them or make them match a beat.
• Flicker Free - Scrambled PWM technology to avoid flickering when filming.
• Green/Magenta Correction - Adjust green/magenta during content creation to reduce postproduction work.
• Scheduled StandBy - Switch lights into power-saving standby and schedule them to wake up when the production starts.
• Dynamic PowerBoost - This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
• Emergency Lights - Switches to white light when AC power is cut to keep your event save
• Anti-Theft - The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
• DJ Feature - Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
• Other Features - The AsteraApp™ is packed with many additional items and new features are frequently added via software update.

• Colors: Red, Green, Blue, Mint, Amber
• Total LED power: 36W
• Maximum power draw: 24W
• TLCI: ?96
• CRI: ?96
• Luminous flux: 1340Lm
• Emittance @1m: 393Lx
• Strobe: 0-25Hz
• Beam Angle: 120?
• Field Angle: 180?
• Pixels: 8

• Battery: LG Chem Lithium-ion
• Battery Lifetime: 70% after 300 cycles
• Battery Runtime: Up to 20 hours
• LED Lifetime: 50.000 Hours
• Charging time (nominal): 3 Hours
• Input Voltage : 24V 1.25A

• Backside Display with HSI control
• Infrared
• Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
• Range: 300m | 330 Yards
• Wired DMX: supported via Astera PowerBox
• Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

• Housing: Polycarbonate, metal endcap
• IP Rating: IP65
• Relative humidity: 0-100%
• Operating Temperature: 0-40 ?C | 32-104 ?F
• Weight: 0.765kg | 1.68Lbs
• Dimensions: Ø42 x 550mm | Ø1.6" x H22.7"

• Product Data Sheet
