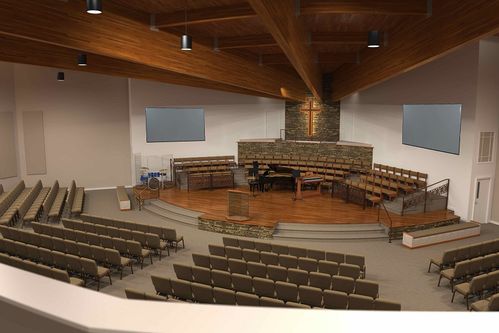

House of Worship Installer Package 63991 - Dual Laser Projectors, Fixed ALR 165" Diagonal Screens

ALR Dual Laser 165 Worship Package

The Focused Technology House of Worship package was designed as a turn-key solution for even the most demanding sanctuary environments. Two powerful 5500 laser projectors require no filter or lamp upkeep with a lamp-less design rated for 20,000 hours of use. Twin slim bezel, ambient light rejecting screens minimize contrast drop-off typical of high ambient light projection environments for imagery the entire congregation can see. The included mounting hardware works with both traditional and vaulted ceilings. Surpass the 50' run length of HDMI with the included 200' Cat6 cables and HDBaseT recievers. Plus, the Focused Technology House of Worship package also comes with a variety of control options, from a simple wall-mounted control pad to a pre-programmed control station and monitor, allowing you control of the content fed to both projectors, even without direct line of sight.

Need a custom-fit solution for your sanctuary? Our local install team has been designing and installing A/V solutions for sanctuaries in our local area for over 15 years! Give us a call at 1-888-686-0551 and let us build you a custom solution that's perfect for your space!

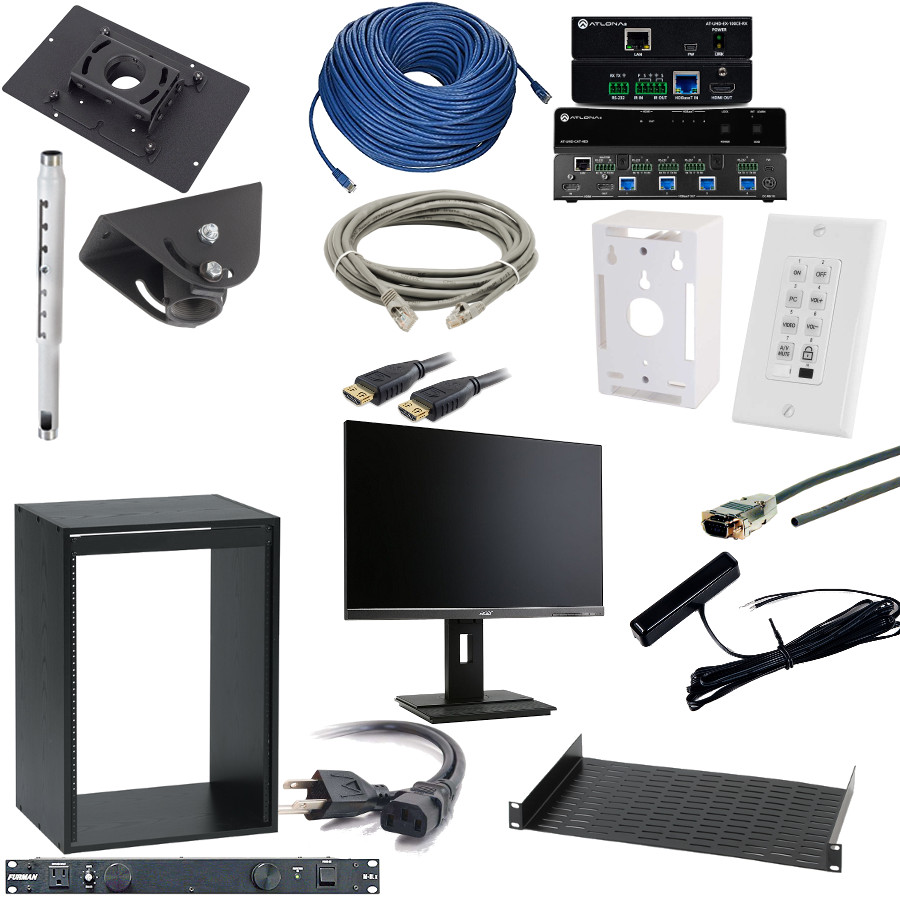

The Focused Technology House of Worship Package ships with ALL of the following:

• Optoma ZU510T-W HDBaseT Laser Projector (Qty. x 2) - The ZU510T-W is a ProAV projector offering bright and vivid image quality, advanced optical components, and a low-weight, compact size. Combined with DURACORE laser light source and IP5X-certified dust resistance rating for its optical engine, it is reliable, cost-efficient and low maintenance, with no need for lamp and filter changes. It provides up to 20,000 hours of light source operation and is perfect for boardroom, higher education, houses of worship, and small entertainment venue use.
• Chief RPAU Universal Projector Mount, White (Qty. x 2) - The RPA Universal is perfect when you are uncertain of projector types during installations or models may change in the future. The RPA-U offers multiple ceiling mounting methods and includes everything you need for a quick installation.
• Chief Angled Ceiling Adapter, White (Qty. x 2) - CMA-395 adjusts from -5 degrees to +95 degrees to level an angled ceiling. Accepts 1 1/2" NPT threaded extension column. Three slotted mounting holes allow horizontal and vertical adjustment for a precise installation. Includes set screw.

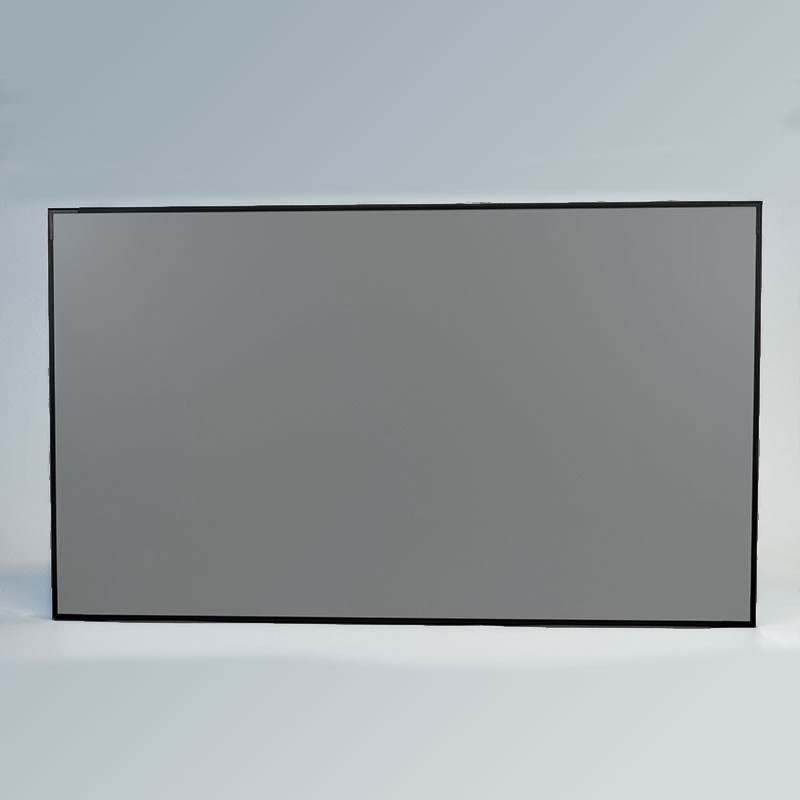

• Draper Profile+ Fixed Frame Screen 87.5" x 140" (Qty. x 2) - Draper’s new Profile permanently tensioned screen creates the clean, stylish, high tech look of a flat panel display, making a bold statement in your home, office or classroom. The CS1000X ALR projection fabric performs very well in spaces where there is high ambient light and narrow viewing angles. Like all TecVision surfaces CS1000X ALR offers superior quality, consistency, uniformity and is 8K ready.
• Atlona 4K/UHD Four-Output HDMI to HDBaseT Extended Distance Distribution Amplifier (Qty. x 1) - The Atlona AT-UHD-CAT-4ED distribution amplifier featuring pass-through HDMI input connections, four extended distance, Ethernet-enabled HDBaseT outputs and display control capability. Each output transmits AV and control signals up to 330 ft. (100 m). Features include 4K/UHD @ 60 Hz with 4:2:0 color subsampling, HDCP 2.2 compliance, EDID management, and PoE for powering remote receivers.
• Atlona 4K/UHD HDMI Over 100 M HDBaseT Receiver with Ethernet, Control, and PoE (Qty. x 2) - The Atlona AT-UHD-EX-100CE-RX is a 4K/UHD HDMI over 100M HDBaseT receiver for AV signals up to 330 feet (100 meters) over category cable with Ethernet pass through, RS-232 and IR control, plus Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The AT-UHD-EX-100CE-RX is HDCP 2.2 compliant and supports EDID communication.
• Single Gang 2-Port A/V Controller, White (Qty. x 1) - The A/V Controller is a full-featured in-wall solution that is perfect for easy control of all classroom or conference room audio/video equipment; including up to two serial devices, such as a projector or display, a 12V DC triggered device, such as a projector screen or blinds and IR devices such as a DVD/Blu-ray player, document camera and other equipment.
• 3-5' Adjustable Extension Column, White (Qty. x 2) - Adjustable extension column - 36" to 60". Compatible with 32", 46", 55" ceiling mounts.
• Cat6 Snagless Solid Shielded Black Patch Cable, 200 feet (Qty. x 2)
• Cat6 550 Mhz Snagless Patch Cable, 14ft Black (Qty. x 1)
• 3' HDMI Cable (Qty. x 3)
• DB9 pin to bare wire cable 6 ft (Qty. x 4)
• Single Gang Wall Box (Qty. x 1)
• 12ft 18 AWG Universal Power Cord (Qty. x 2)
• IR Reciever Cable (Qty. x 2)
• Acer B246WL 24" LED LCD Monitor (Qty. x 1)
• Furman M-8Lx Merit X Series 8 Outlet Power Conditioner & Surge Protector - with Dual Rack Lights (Qty. x 1)
• Rack-mount Shelf (Qty. x 1)
