One Room One Cable Deluxe Package

Get everything you need to set up and give professional presentations with our One Room, One Cable Deluxe Package! Aurora’s HDBaseT peripherals allow you to carry audio, video, and projector commands farther than ever before; up to 330 feet over one CAT5 cable, or 600 feet over a CAT6a Shielded cable! And with Aurora’s DXE-CAT-RX3C-A, you’ll also be able to send commands over WiFi, allowing you to control the entire presentation with tablets such as the iPad!

Pair those great features with one of ASK Proxima’s brand new C Series projectors; giving you 5,000+ lumens at a price that’s never been more affordable!

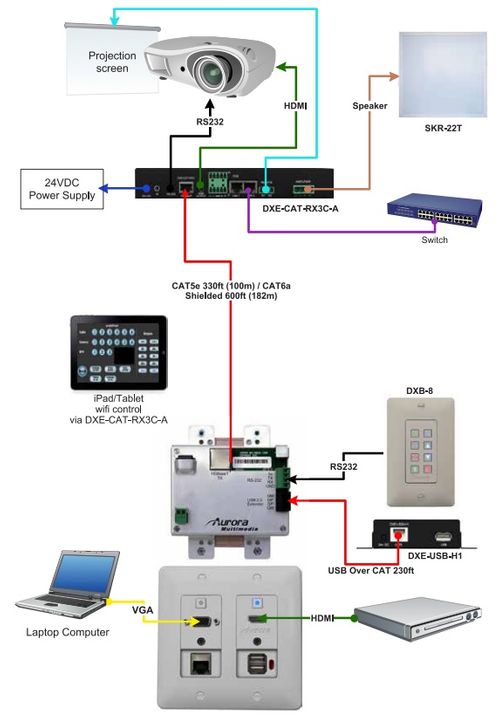

The One Room, One Cable Deluxe Package includes the following:

• ASK Proxima C520 Projector -or- ASK Proxima C510W Projector - The C520 is one of the most affordable commercial projectors on the market; giving you 5,500 lumens of brightness for under $1,500. Alternatively, choose the C510W projector instead, and trade 500 lumens of brightness for WXGA resolution!


• Aurora Digital Extreme HDBaseT HDMI Extender - DXE-CAT-RX3C-A - Part of Aurora’s Digital Extreme series, this HDBaseT extender soars above the competition by allowing users to extend over CAT5 cable farther than ever before; up to 330ft with CAT5, and 600ft over CAT6a Shielded! Plus, with DXE-CAT-RX3C-A’s LAN capabilities, it can also issue commands to the A/V system over Wi-Fi, allowing virtually any device with a browser to control the A/V system. Great for BYOD presenters!


• Aurora 2 Input HDBaseT Wall Plate (VGA, HDMI, LAN, USB 2.0) - White - DXW-2EU-W - This Double Gang Wall Plate has inputs for VGA, HDMI, LAN, and USB 2.0. The wallplate also has buttons on the front for easy control over input.


• Aurora USB 2.0 480Mb 230' CAT Extender Transmitter (Computer/Host Side) for DXW-2EU - DXE-USB-H1 - Transmitter for HDBaseT system


• Aurora 8-Button Backlit Panel (White) - DXB-8-W - Physical programmable control panel for A/V system. Single gang Decora style wallplate.


• CAT5e/CAT6 cabling - All ethernet cabling under 100’ is CAT5e; for lengths greater than 100’, CAT6 cabling is used. Use the dropdown menu above to select the length appropriate for your application.


• RS-232 Cabling (25 ft) - RS-232 supplied cabling is used to run the DXW-2EU-W input wall plate to the DXB-8-W controller wall plate.


• Aurora 2'x2' Ceiling Tile Mounted Speaker, 35W RMS, 8Ohm/70v/100v - SKR-22T - Ceiling mounted speaker for false ceiling installation.

  Focused Technology is available to answer any questions you may have regarding this package. Please call 1-888-686-0551 for help from one of our A/V experts.
