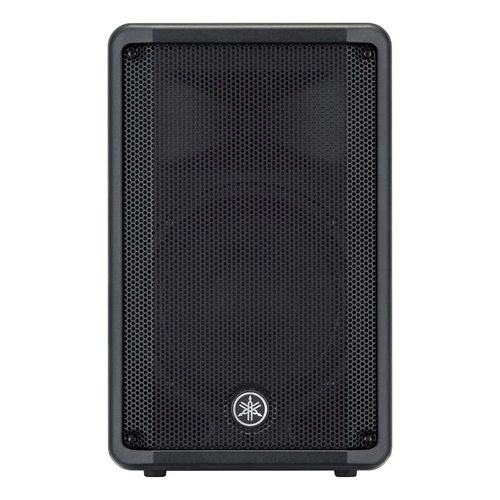

Yamaha 10" 2-way Powered Loudspeaker - DBR10

Yamaha 10" 2-way Powered Loudspeaker - DBR10

Part Number: DBR10
Our Price: $399.99
Availability: Contact us for availability
-
+
Free Shipping

Description

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Power to Play

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

High-Efficiency 1000W Class-D Amplifiers - The DBR's lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.

*DBR10 has an output level of 700W.

Custom Designed Transducer - The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.

*DBR10 features a 1" compression driver.

A Rugged, Highly Portable Cabinet - DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

Easy-to-use Onboard 2-Channel Mixer - DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Smart Enclosure Design for Floor Monitoring - DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Rigging Points for Installation Applications - DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

*Speaker brackets and eye-bolts are not included.

Specifications

DBR15DBR12DBR10
Speaker type2-way, Bi-amp powered speaker, Bass-reflex type2-way, Bi-amp powered speaker, Bass-reflex type2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)50Hz – 20kHz52Hz – 20kHz55Hz – 20kHz
Nominal coverageH90°90°90°
V60°60°60°
ComponentsLFDiameter:15" cone, Voice Coil:2.5", Magnet:FerriteDiameter:12" cone, Voice Coil:2", Magnet:FerriteDiameter:10" cone, Voice Coil:2", Magnet:Ferrite
HFDiaphragm:1.4", Type: 1" throat compression driver, Magnet:FerriteDiaphragm:1.4", Type: 1" throat compression driver, Magnet:FerriteDiaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
Crossover2.1kHz: FIR-X tuning™ (linear phase FIR filter)2.1kHz: FIR-X tuning™ (linear phase FIR filter)2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output powerDynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Maximum output level (1m; on axis)132dB SPL131dB SPL129dB SPL
I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFFD-CONTOUR: FOH/MAIN, MONITOR, OFFD-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipationFan cooling, 4 speedsFan cooling, 4 speedsFan cooling, 4 speeds
Power requirements100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption74W(1/8 Power Consumption), 18W(Idle)74W(1/8 Power Consumption), 18W(Idle)60W(1/8 Power Consumption), 18W(Idle)
Cabinet materialPlasticPlasticPlastic
FinishBlackBlackBlack
HandleSide x 2Side x 2Top x 1
Flying and mounting hardwareBottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)Bottom x 2 (Fit for M8 x 15 mm eyebolts)
Pole socket35mm (Bottom x 1)35mm (Bottom x 1)35mm (Bottom x 1)
DimensionsW455mm (17.9")376mm (14.8")308mm (12.1")
H700mm (27.6")601mm (23.7")493mm (19.4")
D378mm (14.9")348mm (13.7")289mm (11.4")
Net weight19.3 kg (42.6 lbs)15.8 kg (34.8 lbs)10.5 kg (23.2 lbs)
