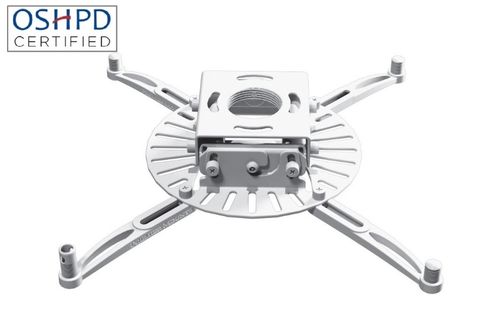

Premier Low-Profile Universal Projector Mount, White - PDS-PLUS-W

Premier Low-Profile Universal Projector Mount, White - PDS-PLUS-W

Part Number: PDS-PLUS-W
Our Price: $128.80
Availability: Usually ships the same business day
-
+

Description

Low-Profile Universal Projector Mount, White

The PDS-PLUS-W is a low-profile universal projector mount that can be mounted directly to the ceiling or in use with a drop pipe. This mount truly is universal because it features a slotted mounting base with six interchangeable legs (four long and two short) to reach both shorter and wider mounting points. Most standard sized projectors will work well with the PDS-PLUS-W.

Installation of the PDS-PLUS-W is easy because it mates to standard 1.5 in. NPT pipe, or directly to structural surfaces. In addition, it is very lightweight, weighing under 5lbs, in order to make ceiling installation a little easier on installers.

Being one of the most popular mounts for education applications, the PDS-PLUS-W is OSHPD approved, UL listed and includes Lock-It™ security hardware so you have piece of mind when installing in classrooms or high traffic areas.

Specifications

Shipping Weight :4.9 lb. | 2.22 kg
Weight Capacity per Mount :75 lb. | 34.02 kg
Width :16.43 in. | 417.32 mm
Height :2.8 in. | 71.12 mm
Mounting Pattern Type :None
Pitch :+16.50°/ -16.50°
Roll :+7.50°/ -7.50°
Yaw :+42.00°/ -42.00°
Shipping Box DIM Sizes :11.8 in. (wide) x 6.5 in. (high) x 11.8 in. (deep) | 299.72 mm x 165.1 mm x 299.72 mm
Diameter :16.43 in. | 417.32 mm
UPC :829973204044
