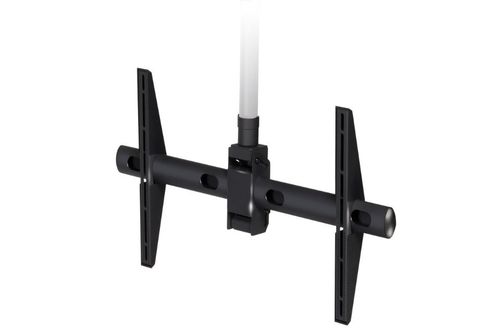

Premier Ceiling Mount for Flat-Panels up to 175 lb. - ECM-3763S

Premier Ceiling Mount for Flat-Panels up to 175 lb. - ECM-3763S

Part Number: ECM-3763S
Our Price: $291.20
Availability: Usually ships the same business day
-
+

Description

Ceiling Mount for Flat-Panels up to 175 lb.

The ECM-3763S is a ceiling mount made to hold a single flat panel display that weighs up to 175lb. Using 1.5 inch NPT pipe (not included) or a height adjustable pipe adapter the ECM-3763S can sit at a variety of lengths depending on the application. Overhead displays with the backside showing should have a clean and organized look, that's why we engineered the ECM-3763S to have integrated cable management channels to avoid loose wires and power cords.

Speed of installation is important, especially when working from a ladder or scissor lift, that's why the ECM-3763S does not have adapters and is ready to mount straight out of the box. In addition, some applications will require mini PC or digital media players to run content, so we have optional brackets to support these as well.

The ECM-3763S is perfect for digital signage, education, healthcare, hospitality or restaurant applications because of its durable build and lifetime warranty.

Specifications

Shipping Weight :24.4 lb. | 11.07 kg
Weight Capacity per Mount :175 lb. | 79.38 kg
Number of Mounts :1
Total Weight Capacity :175 lb. | 79.38 kg
Width :37.2 in. | 944.88 mm
Height :21.32 in. | 541.53 mm
Depth :3.34 in. | 84.84 mm
Mounting Pattern Type :Range
Mounting Pattern :200 x 200 (Min) , 875 x 505 (Max) mm
Typical Display Sizes :37.00 in. & up
Tilt :+15.00°
Swivel :360°
Shipping Box DIM Sizes :13.3 in. (wide) x 4 in. (high) x 48.5 in. (deep) | 337.82 mm x 101.6 mm x 1231.9 mm
UPC :829973150792
