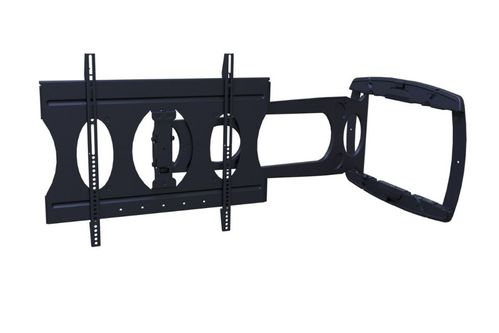

Premier Low Profile Ultra-Slim Swing-Out Mount for Flat-Panels up to 100 lb./45.5 kg. - AM100

Premier Low Profile Ultra-Slim Swing-Out Mount for Flat-Panels up to 100 lb./45.5 kg. - AM100

Part Number: AM100
Our Price: $556.50
Availability: Usually ships the same business day
-
+

Description

Low Profile Ultra-Slim Swing-Out Mount for Flat-Panels up to 100 lb./45.5 kg.

The AM100 is an ultra-slim mounting wall plate that provides three options for the swing arm placement, allowing the mount to swing out from the left, right, or center, based on the installation requirements. The swingout arm extends 30 in. from the wall and provides 15° of downward tilt. The lightweight aluminum mount collapses to just 1.5 in. from the wall. Cable management channels are built into the arm to keep power and cables protected when pulling or pushing the display.

Specifications

Shipping Weight :29.1 lb. | 13.20 kg
Weight Capacity per Mount :100 lb. | 45.36 kg
Number of Mounts :1
Total Weight Capacity :100 lb. | 45.36 kg
Width :26.33 in. | 668.78 mm
Height :21.38 in. | 543.05 mm
Depth :1.5 in. | 38.10 mm
Mounting Pattern Type :Range
Mounting Pattern :100 x 100 (Min) , 630 x 526 (Max) mm
Typical Display Sizes :42.00 in. & up
Tilt :+15.00°
Extension :30 in. | 762.00 mm
Swivel :180°
Shipping Box DIM Sizes :19.5 in. (wide) x 4.5 in. (high) x 30.8 in. (deep) | 495.3 mm x 114.3 mm x 782.32 mm
UPC :829973086480
