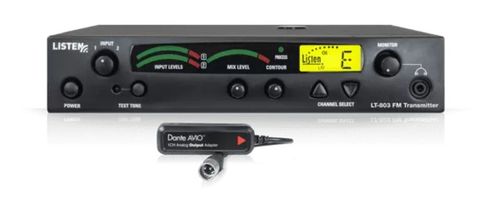

Listen Technologies Stationary 3-Channel RF Transmitter (72 MHz) (Dante) - LT-803-072-01-D

Listen Technologies Stationary 3-Channel RF Transmitter (72 MHz) (Dante) - LT-803-072-01-D

Part Number: LT-803-072-01-D
Our Price: $829.00
Availability: Usually ships the same business day
-
+

Description

Stationary 3-Channel RF Transmitter (72 MHz) (Dante)

The LT-803-072 Stationary 3-Channel RF Transmitter is an excellent choice for assistive listening and is Dante compatible through the use of the LA-465 Dante adapter. Dante input or universal analog inputs allow for the use of nearly any audio source including mixers, microphones, MP3 players, and more, and our signature Look & Listen (TM) LCD display provides immediate information about channel, lock, and RF power. The LT-803-072 also includes a power supply making it easy to set up and start using right away. Antenna not included.

Includes
  • One (1) LT-803-072 Stationary 3-Channel RF Transmitter (72 MHz)
  • One (1) LA-465 Dante 1 Channel Output XLR Adapter (POE required)
  • One (1) Power supply
  • One (1) Quick Reference Card
Key Features
  • Affordable transmitter option for assistive listening
  • 3-Channels for best channel selection
  • Simple to install, manage, and use
  • 100% digital audio transmission for solid, reliable signal
  • Dante adapter enabled
  • Look & Listen LCD display
  • Works with any audio source on the market
  • 30-day, no-obligation demonstration available for your venue
  • Compatible with a wide range of Listen Technologies accessories

Specifications

Frequency Response50 Hz - 15 kHz (±3 dB)
Signal-to-Noise Ratio62 dB (A-Weighted)
Audio Input 1Rear panel, one (1) Female XLR and 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC
Audio Input 2Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohm
Audio ProcessingCompression can be turned on/off. Slope internally adjustable from 1:1 to 4:1. Default 2:1
ContourCuts and boosts frequencies above 5 kHz
Distortion< 2% total harmonic distortion (THD) at 80% deviation
Audio OutputInput 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm
Headphone OutputFront panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm
User ControlsFront Panel: Power, Test Tone on/off, Channel up/down, Input Levels, Mix Level, Contour, Monitor volume controlRear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high)
Internal AdjustmentsCompression ratio for audio processor
ProgrammingProcess on/off, channel lock
LCDChannel Designation, lock status, RF power level (front panel)
Audio Input Status LEDsIndicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red)
ProcessingIndicated by a green LED when on (front panel)
Test ToneRed LED illuminates when test tone is enabled
RF PowerIndicated on the LCD (low, mid, high)
Frequency Range(A) 72.100, (E) 72.900, (H) 75.900
Number of Channels3 wide band
Frequency Accuracy± .005% stability 0 to 50ºC (32 to 122º)
Antenna TypeVarious antennas available
Transmitter Stability50 PPM
Transmission RangeUp to 305 m (1,000 ft.)
Antenna ConnectorBNC, 50 Ohms (Use RG-58 < 100 ft or RG-8 > 100ft)
Output Power80,000 uV at 3 m
Power SupplyIn line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards)
Power Supply Input100-240 VAC, 50-60 Hz, 0.4 A
Power Supply Output12 VDC, 1.3 A, 15.6 W
Power Supply Connector5.0 mm (0.02 in.) OD, 2.5 mm (0.01 in.) ID, barrel type
ComplianceUL, CE, GS, TÜV, RoHS
Width21.5 cm (8.50 in.)
Height4.5 cm (1.75 in.)
Depth23 cm (9.13 in.)
ColorDark Grey with white silk screening
Unit Weight with Power Supply2.0 kg (4.5 lbs.)
Shipping Weight2.7 kg (6.0 lbs.)
Rack MountingOne (1) rack space height, 1/2 rack space wide. One (1) or two (2) transmitters can be mounted in one rack space,optional rack mount (LA-326)
Weight1.2 kg (2.6 lbs.)
Temperature - Operation-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity0 to 95% relative humidity, non condensing
RFFCC Part 15, Part 90, Industry Canada
