JBL 15” Horn-Loaded Full-Range Loudspeaker System - PD564

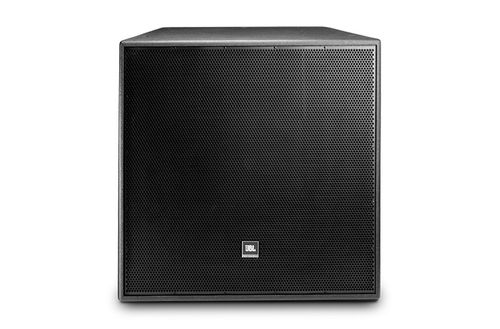

JBL 15” Horn-Loaded Full-Range Loudspeaker System - PD564

Part Number: PD564
Our Price: $4,390.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

15” Horn-Loaded Full-Range Loudspeaker System

PD564 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD564 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.

Features
  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT™ Progressive Transition™ waveguides provide broad band 60° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
  • Rotatable waveguide allows for either horizontal or vertical cabinet orientation
  • Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
Applications
  • Sports Facilities
  • Performance spaces
  • Auditoriums
  • Worship facilities

Specifications

Frequency Range (-10 dB)50Hz to 20kHz
Frequency Response (±3 dB)90Hz to 17kHz
Coverage Pattern60° x 40°
Directivity Factor (Q)20
Directivity Index (DI)13 dB
Crossover ModesBi-amp/Passive switchable
Passive Crossover1.2 kHz
Transducer Power Ratings (AES)LF: 450W 2hrs, 300W 100hrs
HF: 75W, 2hrs, 50W 100hrs
System Power Rating (IEC)Passive mode: 500W 2hrs, 300W 100hrs (IEC)
Maximum SPLBi-amp: LF: 133 cont (139 peak)
HF: 132 cont (138 peak)
Passive: 132 cont (138 peak)
System Sensitivity (1W @ 1m)Passive Mode: 105 dB SPL
Nominal Impedance8 ohms
Low Frequency Driver2031H 380 mm (15 in) driver with 75 mm (3 in) voice coil
Nominal Impedance8 ohms
Sensitivity (1W, 1m within operational band)106dB (avg 300Hz-1.3kHz)
High Frequency DriverJBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance8 ohms
Sensitivity (1W @ 1m)114 dB (avg 1.5k-5kHz)
WaveguideHF: PT-H64HF-1 300 x 300 mm (12 x 12 in)
EnclosureTrapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
Suspension Attachment20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
FinishBlack DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant VersionsWRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
GrillePowder coated 14 gauge perforated steel, acoustically transparent and weather resistant cloth backing.
Input ConnectorsNeutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental SpecificationsMil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation)782.0 x 783.0 x 670.0 mm
(30.8 x 30.8 x 26.4 in)
Net Weight69.0 kg (152 lb)
Optional Accessories229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
