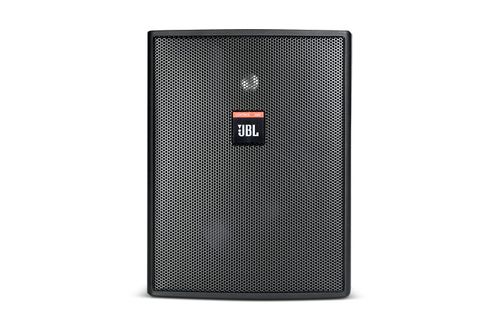

JBL Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications - C25AV-LS

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications

The Control® 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.

Features

UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
Video shielded for use near video monitors.
Extremely smooth frequency response.
Aluminum Grille with Polyester Powder Coating for enduring reliability.
60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
SonicGuard™ overload protection.
130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
Includes InvisiBall® mounting hardware and sealed input panel cover.
Screw-down input terminals.
105° x 85° high frequency horn.

Specifications

Freq. Range (-10 dB)	90 Hz - 20 kHz
Power Capacity	200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting)
Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
Nominal Sensitivity	87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode); 71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)
Nominal Coverage Angle	110° x 85° (1kHz to 16kHz)
Directivity Factor (Q)	4.8 (500 Hz to 4kHz)
Directivity Index (DI)	107 dB @ 1 m (3.3 ft) average, 113 dB peak
Rated Maximum SPL	8 ohms (in bypass mode)
LF Driver	130mm (5.25 in) with polypropylene coated paper cone with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
HF Driver	20mm (.75 in) titanium coated PEI
Termination	Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
Cabinet Material	ABS, (materials rated UL94-5VA)
Grille	Aluminum with polyester powder coating
Environmental	Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
Environmental	Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
Safety Agency	UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
Dimensions (H x W x D)	236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight	3.8 kg (8.4 lbs) ea
Shipping Weight	8.6 kg (19 lbs) pair
Included Accessories	1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
Optional Accessories	MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage. MTC-28/25CM to install speaker down from the ceiling.
