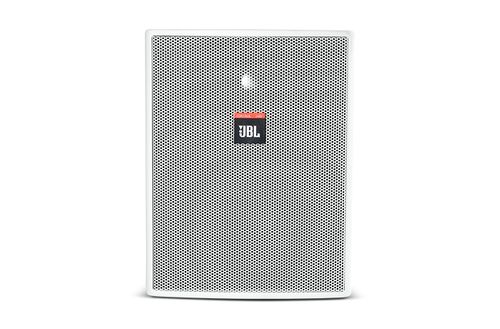

JBL Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications (White) - C25AV-LS-WH

JBL Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications (White) - C25AV-LS-WH

Part Number: C25AV-LS-WH
Our Price: $245.00
Availability: Contact us for availability
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications

The Control® 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.

Features
  • UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
  • Video shielded for use near video monitors.
  • Extremely smooth frequency response.
  • Aluminum Grille with Polyester Powder Coating for enduring reliability.
  • 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
  • SonicGuard™ overload protection.
  • 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
  • Includes InvisiBall® mounting hardware and sealed input panel cover.
  • Screw-down input terminals.
  • 105° x 85° high frequency horn.

Specifications

Freq. Range (-10 dB)90 Hz - 20 kHz
Power Capacity200 Watts Continuous Program Power (at 8 ohm bypass mode)
100 Watts Continuous Pink Noise (at 8 ohm bypass mode)
60 Watts (at 60W tap setting)
Transformer Taps60W, 30W, 15W (& 7.5W @ 70V)
Nominal Sensitivity87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode);
71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)
Nominal Coverage Angle110° x 85° (1kHz to 16kHz)
Directivity Factor (Q)4.8 (500 Hz to 4kHz)
Directivity Index (DI)107 dB @ 1 m (3.3 ft) average, 113 dB peak
Rated Maximum SPL8 ohms (in bypass mode)
LF Driver130mm (5.25 in) with polypropylene coated paper cone with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
HF Driver20mm (.75 in) titanium coated PEI
TerminationCaptive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
Cabinet MaterialABS, (materials rated UL94-5VA)
GrilleAluminum with polyester powder coating
EnvironmentalExceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
EnvironmentalFull-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
Safety AgencyUL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
Dimensions (H x W x D)236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight3.8 kg (8.4 lbs) ea
Shipping Weight8.6 kg (19 lbs) pair
Included Accessories1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
Optional AccessoriesMTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage.
MTC-28/25CM to install speaker down from the ceiling.
