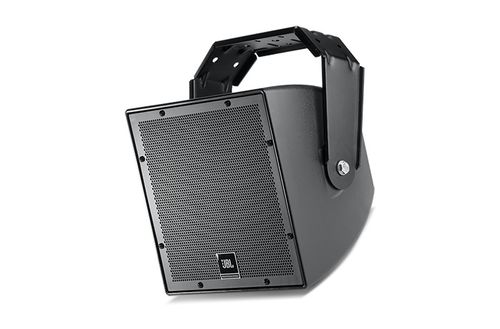

JBL All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF (Black) - AWC82-BK

JBL All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF (Black) - AWC82-BK

Part Number: AWC82-BK
Our Price: $503.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF Features
  • Highly weather-resistant IP56 rating
  • Consistent 120° x 120° broadband pattern control
  • Components:
    • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.
    • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection
  • 80 Hz – 20 kHz frequency response.
  • 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8? low-impedance.

Specifications

Frequency Range (-10 dB)80 Hz – 20 kHz
Frequency Response (±3 dB)100 Hz – 20 kHz
Coverage Pattern120° x 120°
Directivity Factor (Q)8.1 (1 k – 16 kHz)
Directivity Index (DI)8.4 dB (1 k – 16 kHz)
Long-Term System Power Rating (IEC)250 W 2 hrs.
200 W 100 hrs
Sensitivity (2.83V @ 1m)94 dB (Ave. 100 Hz – 20 kHz)
Maximum SPL Direct 8?:118 dB (peaks of 124 dB)
200 W Tap: 117 dB
Crossover Network1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance8 ohms
Transformer Taps70V: 200W, 100W, 50W, 25W
100V: 200W, 100W, 50W
Low Frequency DriverKevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
High Frequency Driver25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
HF Driver ProtectionMinimum audibility SonicGuard™ HF overload protection
EnclosureABS with Glass enclosure, heavily braced
AttachmentTwo M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
GrilleCorrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
Input ConnectionCE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
EnvironmentalIP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Dimensions300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet
331 mm (13.0 in) including gland nut
359 mm (14.2 in) including bracket extending to back
ColorsAvailable in gray (similar to Pantone 420C) and black (-BK)
Net Weight9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
Shipping Weight14.1 kg (31.0 lb)
Included AccessoriesU-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.
