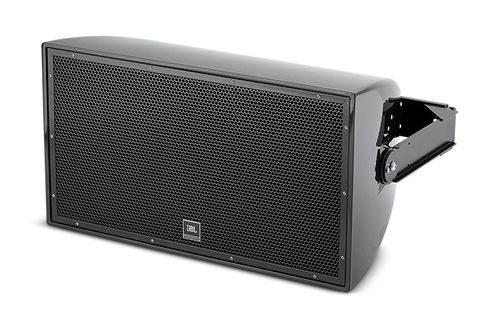

JBL High Power 2-Way All Weather Loudspeaker with 1 x 15" LF for Life Safety Applications (Black) - AW526-LS-BK

JBL High Power 2-Way All Weather Loudspeaker with 1 x 15" LF for Life Safety Applications (Black) - AW526-LS-BK

Part Number: AW526-LS-BK
Our Price: $5,252.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF for Life Safety Applications

The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer.

Features
  • Weather-Resistant, All Fiberglass Enclosure
  • EN54-24 Compliant
  • 120° x 60° Coverage
  • 2265H Differential Drive® Low-Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included
Applications
  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks

Specifications

Frequency Range (-10 dB)39 Hz – 20 kHz
Frequency Response (±3 dB):86 Hz – 17 kHz
Coverage Pattern120° x 60°, rotatable waveguide
Coverage Angle500 Hz1000 Hz2000 Hz4000 Hz
Horizontal128°98°115°108°
Vertical108°95°67°46°
Directivity Factor (Q)7.9
Directivity Index (DI)9 dB
Crossover Frequency1.1 kHz
Long-Term System Power Rating (IEC)400 W (1600 W peak), 100 hrs
Maximum SPL127 dB-SPL cont avg (133 dB peak)
Maximum SPL (@ 4m)112.11 dB
System Sensitivity (1W @ 1m)100 dB
Sensitivity (1W @ 4m)86.98 dB SPL
70V / 100V Transformer Taps70V: 400 W, 200 W, 100W 100V: 400W, 200W
Low Frequency Driver1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal Impedance8 ohms
Sensitivity (1W @ 1m, within operational band)98 dB SPL
High Frequency DriverJBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance8 ohms
Sensitivity (1W @ 1m)113 dB SPL
WaveguidePT-H126HF -1
EnclosureHand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
Suspension Attachment2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
GrilleThree layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input ConnectorCE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental SpecificationsIP55C per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation)485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in)
Net Weight28.3 kg (62.5 lb)
