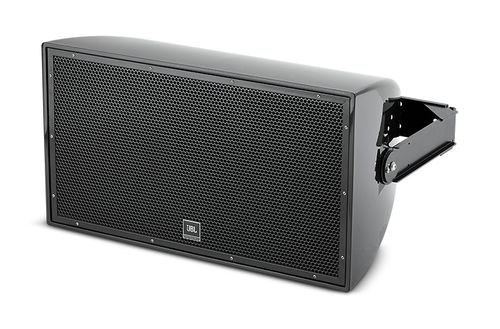

JBL High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn - AW295-BK

JBL High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn - AW295-BK

Part Number: AW295-BK
Our Price: $4,853.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn

The AW295 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW295 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features
  • Weather-Resistant, All Fiberglass Enclosure
  • 90° x 50° Coverage
  • 2262H Differential Driver® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable wave guide for vertical or horizontal orientation
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included
Applications
  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks

Specifications

Frequency Range (-10 dB)43 Hz – 20 kHz
Frequency Response (±3 dB)53 Hz – 18 kHz
Coverage Pattern90° x 50°, rotatable waveguide
Directivity Factor (Q)12.6
Directivity Index (DI)11 dB
Crossover Frequency1.3 kHz
Long-Term System Power Rating (IEC)500 W (2000 W peak), 100 hrs
Maximum SPL126 dB-SPL cont avg (132 dB peak)
System Sensitivity (1W @ 1m)98 dB SPL
70V/100V Transformer Taps70V: 400 W, 200 W, 100W
100V: 400W, 200W
Low Frequency Driver1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with (3 in) dual voice coil
LFD Nominal Impedance8 ohms
LFD Sensitivity (1W @ 1m, within operational band)96 dB SPL
High Frequency DriverJBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
HFD Nominal Impedance8 ohms
HFD Sensitivity (1W @ 1m)113 dB SPL
WaveguidePT-H95HF-1
EnclosureHand-Laminated Fiberglass, gray gelcoat (black available)
Suspension Attachment2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
GrilleThree layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input ConnectorCE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental SpecificationsIP56 per IEC529
Dimensions (H x W x D in horizontal cabinet orientation)409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in)
Net Weight25.2 kg (55.5 lb)
