JBL High Power Subwoofer 2 x 18" 2242H SVG™ Driver - ASB6128

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

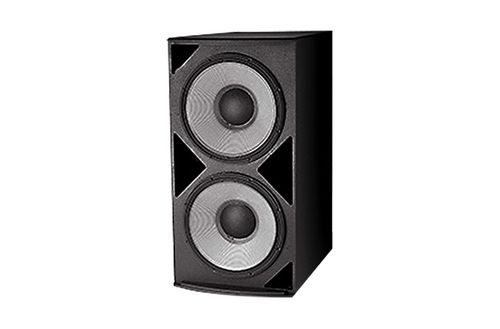

High Power Subwoofer 2 x 18" 2242H SVG™ Driver

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.

Features

Large vent area for high output.
Parallel/Discrete Switchable.
For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Specifications

Frequency Range	28 Hz – 1 kHz (-10 dB)
Frequency Response	35 Hz – 1 kHz ( ± 3 dB)
Input Modes	Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES)	2400 W (9600 W peak), 2 hrs
Long-Term System Power Rating (IEC)	1600 W (6400 W peak), 100 hrs
Maximum SPL	30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak) 100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
System Sensitivity	(dB-SPL, 1W @ 1m) 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB
Nominal Impedance	4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
