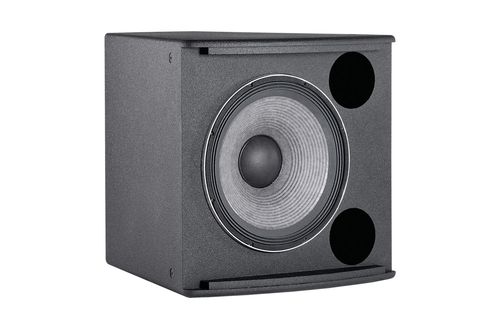

JBL High Power Single 15" Low Frequency Loudspeaker - AL7115

JBL High Power Single 15" Low Frequency Loudspeaker - AL7115

Part Number: AL7115
Our Price: $2,260.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

High Power Single 15" Low Frequency Loudspeaker

AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AL7115 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.

Features
  • 1 x 15" 2265H Differential Drive® Low- Frequency Driver.
  • Large vent area for high output with low distortion.
  • Arrays with various AE Series mid-high frequency and compact 2-way models (see AE Series Array Guide).
Applications
  • Performing arts facilities
  • Theatrical sound design
  • Auditoriums
  • Houses of worship
  • Live clubs
  • Dance-clubs/discotheques
  • Sports facilities
  • Themed entertainment venues

Specifications

Frequency Range (-10 dB)40 Hz – 4.2 kHz
Frequency Response (±3 dB)47 Hz - 3.0 kHz
Transducer Power Rating (AES)1000 W (4000 W peak), 2 hrs
Long-Term System Power Rating (IEC)600 W (2400 W peak), 100 hrs
Maximum SPL50 Hz –125 Hz: 127 dB-SPL cont avg (133 dB peak) 125 Hz – 800 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity
(dB-SPL, 1W @ 1m)
50 Hz – 125 Hz: 97 dB 125 Hz – 800 Hz: 97 dB
Nominal Impedance8 ohms
Low Frequency Driver1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
EnclosureTrapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
FinishBlack DuraFlex™ finish.
White available upon request.
GrillePowder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input ConnectorNL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental SpecificationsMil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical cabinet orientation)548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
Net Weight25.9 kg (57 lb)
Optional AccessoriesM10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
