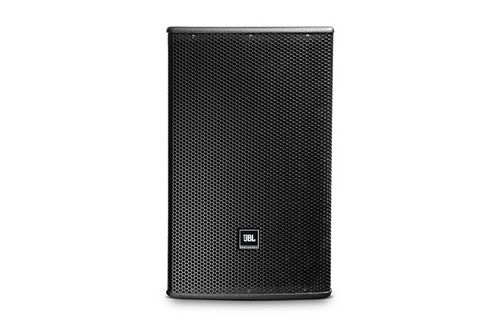

JBL Two-Way Full-Range Loudspeaker with 1 x 12" LF - AC299

JBL Two-Way Full-Range Loudspeaker with 1 x 12" LF - AC299

Part Number: AC299
Our Price: $1,246.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Two-Way Full-Range Loudspeaker with 1 x 12" LF

AC299 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC299 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features
  • Robust 15mm enclosure with black textured finish
  • 310 mm (12 in) LF transducer
  • 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility
Applications
  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities

Specifications

Frequency Range (-10 dB)63 Hz - 20 kHz
Frequency Response (±3 dB)80 Hz - 18 kHz
System Sensitivity (1w @ 1m)97 dB
Nominal Impedance8 ohms
Maximum SPL (1m)121 dB (127 dB peak)
Power Rating
(Continuous/Program/Peak)
250 W/500 W/1000 W
Coverage Pattern90° x 90° (H x V)
Crossover1.5 kHz
Low Frequency Driver1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
High Frequency Driver1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
Input ConnectorDual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure15 mm multi-ply hardwood plywood
GrillePowder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
FinishTextured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D)600 mm x 370 mm x 392 mm
23.6 in x 14.5 in x 15.4 in
Net Weight17.3 kg (38.1lbs)
