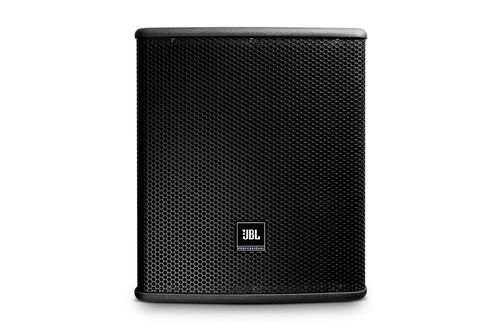

JBL 15" High Power Subwoofer System - AC115S

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

15" High Power Subwoofer System

AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.

Features

High power and long excursion driver for lower frequency reproduction
High sensitivity with lower power compression
Large port for high output and low-frequency reinforcement
Multiple Attachment Points for Ultimate Flexibility
Robust 18 mm multiply hardwood with textured black finish

Applications

Performing Spaces
Clubs & Bars
Houses of Worship
Multi Media Spaces
Retail & Hospitality Spaces
Presentation Suites
Educational Facilities

Specifications

Frequency Range (-10 dB)	32 Hz - 250 Hz
Frequency Response (±3 dB)	40 Hz - 250 Hz
System Sensitivity (1w @ 1m)	94 dB
Nominal Impedance	8 ohms
Maximum SPL(1m)	120 dB (126 dB peak)
Power Rating (Continuous/Program/Peak)	400 W/800 W/1600 W
Low frequency driver	1 x 15? woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil
Input Connector	Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure Material	8 mm multi-ply hardwood plywood
Grille	Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish	Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting	12 x M10 threaded suspension points
Dimensions (H x W x D)	483 mm x 419 mm x 600 mm 19 in x 16.5 in x 23.6 in
Net Weight	24 kg (52.9 lbs)
