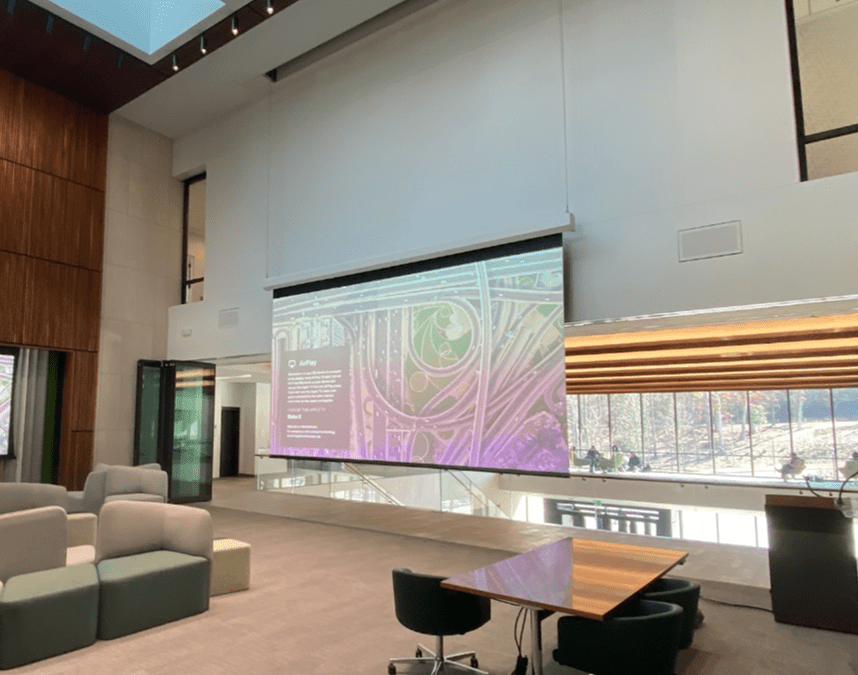

Draper Ropewalker Non-Tensioned Electric Projection Screen

By integrating a screen and lift together into one ceiling-recessed box, the Ropewalker eliminates the need for extra black drop between the screen and high ceilings. With a 34’ (10 m) vertical drop the Ropewalker facilitates the installation of a large, electric screen high above the audience’s line of sight, making it ideal for ballrooms, gymnasiums, houses of worship, and other large venues. Utilizing stainless steel aircraft cables, the viewing surface unrolls from an inner case and the entire screen is lowered to “show” position by an outer case. Safety cables with cable arresters are included that connect the inner and outer cases.

Product Specs

• Image size up to 18' x 18' (548 cm x 548 cm) either tab-tensioned or non-tensioned surfaces .
• Travel range up to 34' (1,067 cm).
• Speed - 20' per minute (120V) / 17' per minute (220V).
• Includes safety cables for projection screen housing that descends into room.
• Includes single station wall switch, other control options available.
