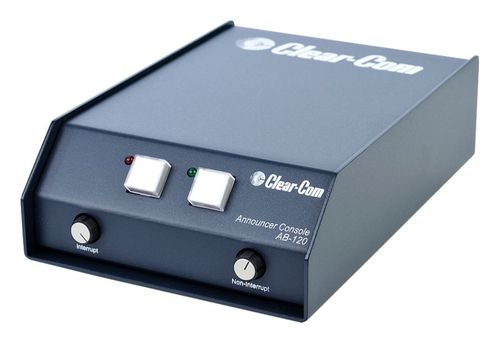

Clear-Com On-Air Announcer Console - AB-120

On-Air Announcer Console

• Talent talk-back circuit automatically mutes mic output to air
• Silent mic mute button for cough and mic on/off functions
• Easily adapts for use with any mic or headset
• Binaural headset output allows talent to hear stereo program, IFB and/or intercom
• IFB input accepts either unbalanced program or powered IFB
• Powered by the intercom line, IFB line or external DC source

• Input Type: Dynamic, Electret
• Input Impedance: 1K Ohms
• Max Input Level: -60 dBu to -40 dBu switchable

• Load Impedance: >= 4 Ohms
• Output Impedance: 47 Ohms
• Output Limiter Threshold: -4dBu, + 3dB
• Max Output Level Before Distortion: -4 dBu

• Off Noise: <-80 dBu
• Output Impedance: >10K Ohms
• Maximum Output: -4 dBu

• Maximum Level Before Clipping: +3 dBu
• Sidetone Null Capability: >25 dB

• Dynamic Mic – Partyline: 40Hz – 22KHz, + 3 dB
• Dynamic Mic – Line Out: 20Hz – 22KHz, + 3 dB
• Dynamic Mic – 4-Wire Out: 100Hz – 22KHz, + 3 dB
• IFB Input – Headset Out: 100Hz – 22KHz, + 3 dB
• Partyline – Headset Out: 150Hz – 22KHz, + 3 dB

• Dynamic Mic – Partyline: <0.1%
• Dynamic Mic – Line Out: <0.05%
• IFB Input – Headset Out: <0.5%
• Partyline – Headset Out: <0.1%

• Dynamic Mic – Partyline: <-75 dBu
• Dynamic Mic – Line Out: <-85 dBu
• IFB Input – Headset Out: <-65 dBu
• Partyline – Headset Out: <-65 dBu

• Dynamic Mic – Partyline: 41 dB + 3 dB
• Dynamic Mic – Hot Mic Out: 40 dB + 3 dB
• IFB Input – Headset Out: 40 dB/22 dB (switchable) + 3 dB
• Partyline – Headset Out: 34 dB + 3 dB

• Intercom/IFB Voltage: 25 – 30 VDC
• Current: 100mA idle, 120mA max
• DC Adapter: 100 – 240V Voltage: 30V @ 0.5A

• 32o – 122o F (0o – 50o C)

• 3 x 6 x 8 in (HxWxD)
• (76 x 152 x 203 mm)

• 2.0 lbs (0.9 kg)
