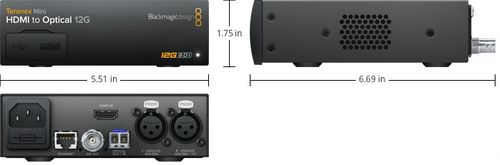

Blackmagic Design Teranex Mini - HDMI to Optical 12G - BMD-CONVNTRM/MB/HOPT

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Convert from HDMI to 12G optical fiber and 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.

Connections

1 x HDMI 2.0 type A connector with support for 2160p60.

LC connector, 1310 nanometer wavelength, single mode.

Automatically matches the SD, HD and 12G-SDI HDMI video input.

Automatically matches the SD, HD and 12G-SDI HDMI video input.

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

4 channels professional 110? balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.

Automatic switching between SD/HD/2K and 4K.

USB and Ethernet.

Yes

Standards

525/29.97 NTSC, 625/25 PAL.

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE 297M for Optical Fiber SDI.

SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

4:2:2 and 4:4:4.

Television standard sample rate of 48 kHz and 24-bit.

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

REC 601, REC 709

525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.

REC 601, REC 709

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Software

Mac OS X™ and Windows™ software upgrade via USB or Ethernet.

Via included updater application.

Settings Control

Mini Switches, USB and Ethernet via free software utility.

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Can be powered via 48V DC using PoE+ (power over ethernet).

15 Watts

90 - 240V AC

What's Included

• Teranex Mini - HDMI to Optical 12G
• Software SD Card

Warranty

3 year Limited Manufacturer’s Warranty.
