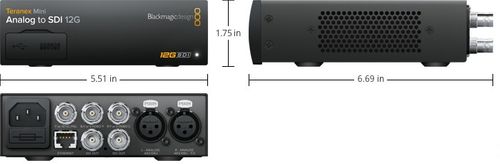

Blackmagic Design Teranex Mini - Analog to SDI 12G - BMD-CONVNTRM/BB/ANSDI

Blackmagic Design Teranex Mini - Analog to SDI 12G - BMD-CONVNTRM/BB/ANSDI

Part Number: BMD-CONVNTRM/BB/ANSDI
Our Price: $571.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.

Specifications

Connections

Analog Video Input

Component SD/HD, NTSC, PAL and S?Video.

SDI Video Output

User selectable to SD, HD and 12G-SDI.

Analog Audio Input

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

AES/EBU Audio Input

4 channels professional 110? balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.

Multi Rate Support

SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.

Updates and Configuration

USB or Ethernet.

Re-Clocking

Yes

Standards

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2 and 4:4:4.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

SDI Color Space

REC 601, REC 709

SDI Format Support

625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p50, 3840 x 2160p59.94.

Analog Format Support

625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60.

Analog Color Space

REC 601, REC 709

Analog Color Precision

4:2:2

Software

Software Control

Mac OS X™ and Windows™ software upgrade via USB and Ethernet

Internal Software Upgrade

Via included updater application.

Settings Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

15 Watts

Operational Voltage Range

90 - 240V AC

What's Included

  • Teranex Mini - Analog to SDI 12G
  • Software SD Card

Warranty

3 year Limited Manufacturer’s Warranty.
