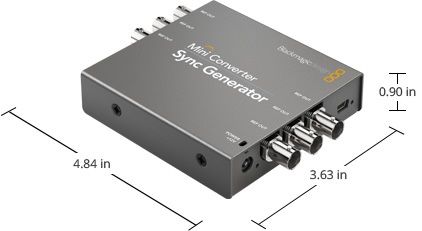

Blackmagic Design Mini Converter - Sync Generator - BMD-CONVMSYNC

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri-Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!

Connections

6 x common reference outputs.

Via mini switches

USB

Standards

625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30.

Software

Mac OS X™ and Windows™ software upgrade via USB.

Via included updater application.

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.

Settings Control

Mini Switches or USB software.

Power Requirements

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

3.00 Watts

12V DC

What's Included

• Mini Converter Sync Generator
• Software CD
• 12V universal power supply with international socket adapters

Warranty

3 Year Limited Manufacturer's Warranty.
