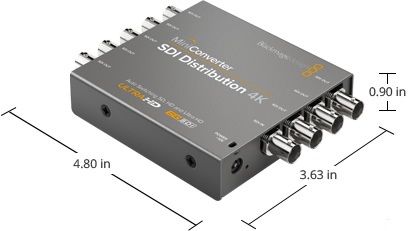

Blackmagic Design Mini Converter - SDI Distribution 4K - BMD-CONVMSDIDA4K

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.

Connections

Switchable between SD, HD and 6G-SDI.

Yes

8 outputs automatically match the SDI video input.

Auto detection of SD, HD or 6G-SDI.

Standards

525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60

2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B and SMPTE 425M

SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.

4:2:2 and 4:4:4

Television standard sample rate of 48 kHz and 24 bit.

4:2:2 and 4:4:4

YUV and RGB

Automatically detects SD, HD or 6G-SDI.

Yes

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.

Power Requirements

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

4.80 Watts

12 - 31V DC

What's Included

• Mini Converter SDI Distribution 4K
• Software CD
• 12V universal power supply with international socket adapters

Warranty

3 Year Limited Manufacturer's Warranty.
